Avio 550 Max ICP-OES Scott/Cross-Flow Configuration

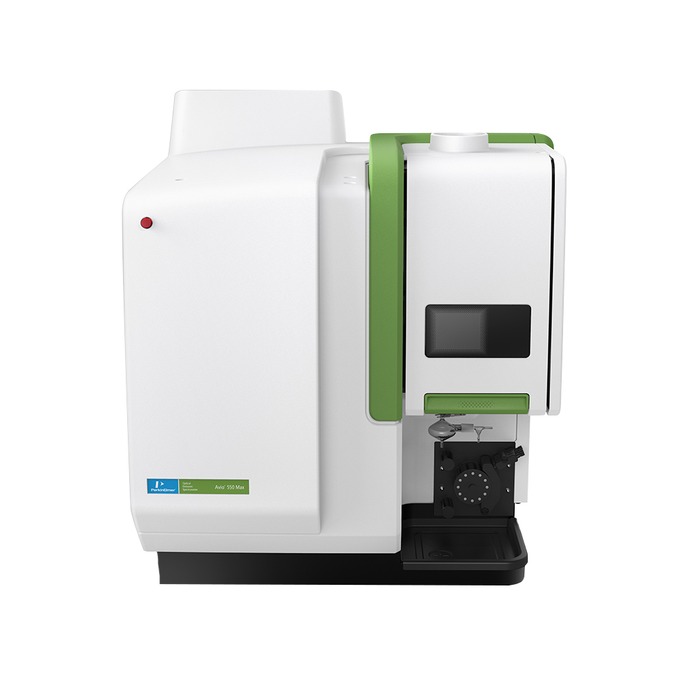

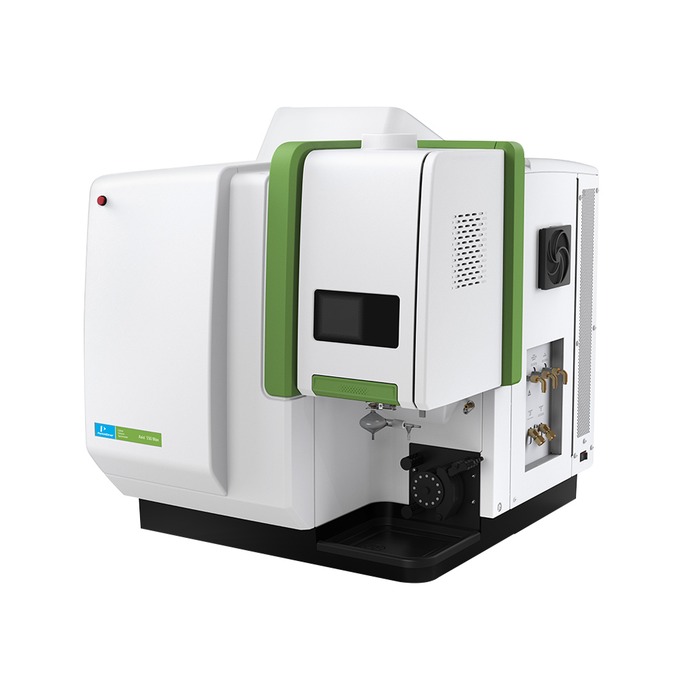

The Avio® 550 Max is a compact, fully simultaneous ICP-OES instrument, ideal for labs with high throughput requirements. It utilizes a vertical plasma and is engineered to handle even the most difficult, high-matrix samples without dilution, delivering productivity, performance and faster return on investment. Plus, Syngistix™ for ICP software provides an intuitive and smart environment with smart monitoring for real-time instrument and sample diagnostics as well as results viewing to easily track sample analysis, quality control, and internal standard performance to guarantee sample accuracy.



Specifications

21 CFR Part 11 Compatible Yes
Depth 84.0 cm
Height 87.0 cm
Model Name Avio 550 Max Scott/Cross-Flow
Warranty 1 Year
Weight 163.0 kg
Width 76.0 cm

Proprietary features on the Avio 550 Max ICP-OES include:

  • Flat Plate™ plasma technology delivers a more robust, stable plasma, the lowest argon consumption of any ICP, and is maintenance-free
  • PlasmaShear™ system offers maintenance-free, argon-free interference removal
  • Universal Data Acquisition in Syngistix software, only available on the Avio 550/560 Max, enables simultaneous acquisition of all available wavelengths, with virtually no time or storage penalty
  • Vertical plasma torch design provides 100% matrix tolerance, minimizing sample preparation time
  • Dual view optimizes axial and radial plasma viewing to the extended linear dynamic range, measuring high and low concentrations in the same run, regardless of wavelength
  • Advanced optical system with free-form and off-axis coated optics brings improved precision, accuracy and speed
  • Color PlasmaCam™ provides continuous viewing of the plasma, simplifying method development and enabling remote diagnostic capabilities
  • Syngistix for ICP Software delivers an intuitive, left-to-right, icon-based design, mirroring the progression of your workflow with smart features that guide you through each step for greater control and confidence


And for added flexibility, the Avio 550 Max is available in three configurations, allowing you to select the option best suited for your application(s). This configuration of the Avio 550 Max is equipped with Scott/Cross-Flow sample introduction, suitable for most applications even those requiring hydrofluoric acid.

Avio 550 Max Scott/Cross-Flow

Avio 550 Max Concentric/Cyclonic

Avio 550 Max Oils

The Avio® 550 Max is a compact, fully simultaneous ICP-OES instrument, ideal for labs with high throughput requirements. It utilizes a vertical plasma and is engineered to handle even the most difficult, high-matrix samples without dilution, delivering productivity, performance and faster return on investment.
