Atago

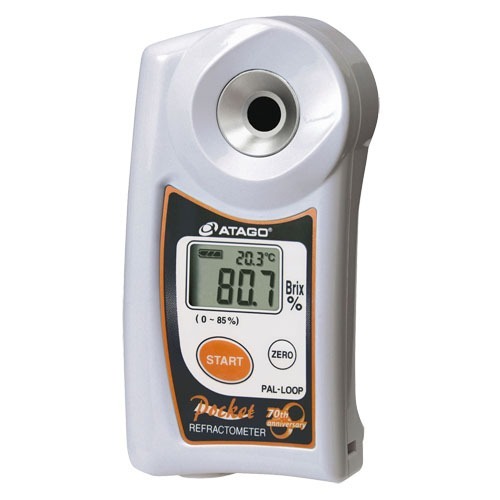

Digital Hand-held PAL-LOOP

Description Features Configuration Application

Released on ATAGO's 70th Anniversary, the PAL-LOOP is a special model with new Continuous Measurement feature to give you extra method tailored to meet your needs - select either the new continuous and conventional single measurement mode. Since the measurement range of PAL-LOOP is Brix 0.0 - 85.0%, it can be used to measure almost any samples.

2 Measurement modes
Calibration with water only
Measurement in 3 seconds
Extremely water resistant (IP65)
Light & compact, 100g
Ergonomically designed for easy, one-handed operation
Convenient storage case
Automatic Temp.
Compensation (ATC) Designed with a strap holder option

Specifications

Model	PAL-LOOP
Cat.No.	3842
Measurement mode	1. Single measurement 2. Continuous measurement
Range	Brix : 0.0 to 85.0 %
Resolution	Brix : 0.1% Temperature : 0.1ﾟC
Accuracy	±0.2 %
Temperature compensation	10 to 100 ﾟC

Common Specification

Sample Volume	2 to 3 drops
Measurement Time	About 3 seconds
Power Supply	2 × AAA Batteries
Battery Life	About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class	IP65 Water resistant
Dimensions & Weight	5.5 × 3.1 × 10.9cm 100g (main unit only)

(RE-39411) MAGIC™ ( for PAL ) - This adapter is used for hot sample to cool it down quickly and minimize evaporation
(RE-39410) STRAP - Good for carrying the PAL and PEN by hanging on the neck
(RE-39409) PAL-CASE - Can be clipped to your belt for easy carrying
(RE-39413) PAL Silicone Cover - A silicone cover for PAL
(RE-29401) SUPER EXTRACTOR - Very useful tool to extract juices from various kinds of sample, such as fruit, vegetables, leaves, plants, etc.
(RE-110010) Sucrose Solution - 10%
(RE-110020) Sucrose Solution - 20%
(RE-110030) Sucrose Solution - 30%
(RE-110040) Sucrose Solution - 40%
(RE-110050) Sucrose Solution - 50%

Fruit and vegetable orchids
Markets
Supermarkets
Restaurants
Beverage and food factories
