Atago

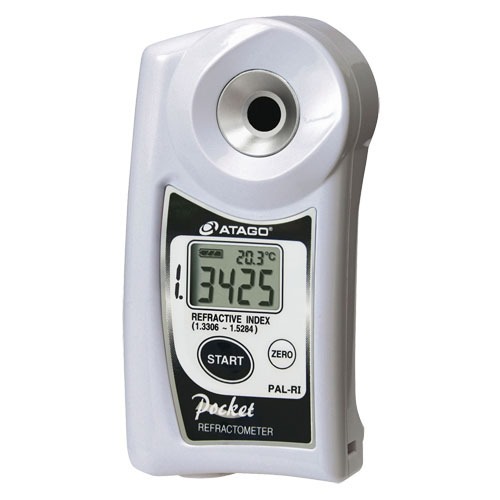

Digital Hand-held PAL-RI

Description Features Configuration Application

The long-awaited "Pocket" digital and compact sized PAL-RI was released. When the start key is pressed after placing some droplets of sample on the prism, the Refractive Index (resolution 0.0001) and temperature °C of the measurement will be displayed continuously.

  • Requires only a few drops of sample
  • Measurement in 3 seconds
  • Ergonomically designed for easy, one-handed operation
  • Light & Compact, 100g
  • Designed with a strap holder option
  • Highly water resistant (IP65)
  • Convenient storage case
  • Battery power indicator

Specifications



Model

PAL-RI

Cat.No.

3850

Scale

Refractive Index

Range

Refractive Index:1.3306 to 1.5284

Temperature 5 to 45ﾟC

Resolution

Refractive Index : 0.0001

Temperature : 0.1ﾟC

Accuracy

Refractive Index:±0.0003

(water at 20ﾟC)

Measurement Temperature

5 to 45ﾟC



Common Specification
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

PAL-BX/RI has dual scales of Brix full range : Brix 0.0 to 93.0%, high measurement accuracy : Brix ±0.1% and refractive index (resolution 0.0001). RI will continuously scroll across the display. The PAL-BX/RI works perfectly for measuring almost any sample.
