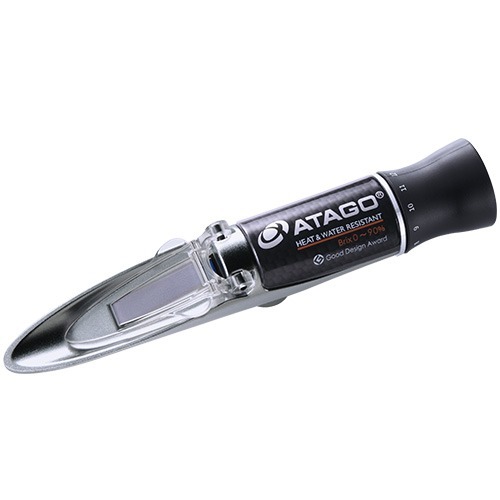

Hand Held Refractometer MASTER-500

Description Features Configuration Application

For simple. manual measurement of concentrations and refractive indices of liquids. Hand-held. precision refractometers with focussing eyepiece. soft rubber eyecups (to reduce straylight ingress. also spectacle lenses do not slip off and are not scratched). case and conversion tables. Hand-held refractometers cannot be fitted with a thermostatic controller and so measurements have to be temperature compensated.

  • Measuring Range: 0 - 90 % Brix
  • Minimum Scale Value: 1.0 % Brix
  • The MASTER-500 is a full-range refractometer which covers 0 to 90% Brix.
  • The heat resistant design allows for worry-free measurements of high-temperature liquids. It is also IP65 water resistant.
  • Models with extra code M: Basic model
  • Models with extra code T: with automatic temperature compensation (ATC)
  • Models with extra code a: with automatic temperature compensation (ATC) and protection class IP65
  • Models with extra code H: for hot samples, with prism made of tempered glass

Specifications

Model

MASTER-500

Cat.No.

2363

Range

Brix : 0.0 to 90.0%

Minimum Scale

1.0%

Accuracy

±1.0%

Repeatability

±0.5%


MASTER-500 is 0-90% wide brix model of the MASTER-Series with heat resistant and Water resistant.
