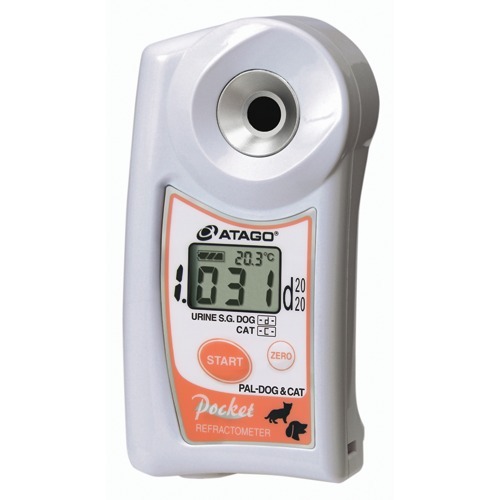

Urine Specific Gravity Refractometer PAL-DOG&CAT

Description Features Configuration Application

This unit is a urine specific gravity refractometer programmed with the specific scales for both dogs and cats in one unit. Simply place 0.3mL of the sample (urine) on the prism, press the start button and a digital measurement value will be displayed in 3 seconds. This compact-sized, 11cm unit is water resistant so it can be washed under running water after each reading.

  • Scale: Urine SpecificGravity
  • Range: 1.0000 to 1.0600 S.G.
  • Resolution: 0.0001 S.G.
  • Accuracy: +/-0.001 S.G.
  • One touch measurement
  • Zero calibration with water
  • 0.3ml sample requirement for measuring
  • 3 second result time
  • Battery operated (2 x AAA. Approx 11,000 measurements)
  • Compact and lightweight for portability







  • PAL-USG(DOG)
  • PAL-USG(CAT)

Specifications

Model

PAL-DOG&CAT

Cat.No.

4529

Scale

Urine S. G.

Range

(Dog) 1.000 to 1.060

(Cat) 1.000 to 1.080

Resolution

Urine S. G. : 0.001

0.1℃

Accuracy

±0.001

Temperature compensation

10 to 35°C











Common Specification



Sample Volume

2 to 3 drops

Measurement Time

About 3 seconds

Power Supply

2 × AAA Batteries

Battery Life

About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)

International Protection Class

IP65 Water resistant

Dimensions & Weight

5.5 × 3.1 × 10.9cm 100g (main unit only)

The PAL-USG (DOG) is a digital "pocket" refractometer designed for measuring the Urine Specific Gravity of dogs (canines) to determine hydration levels.
