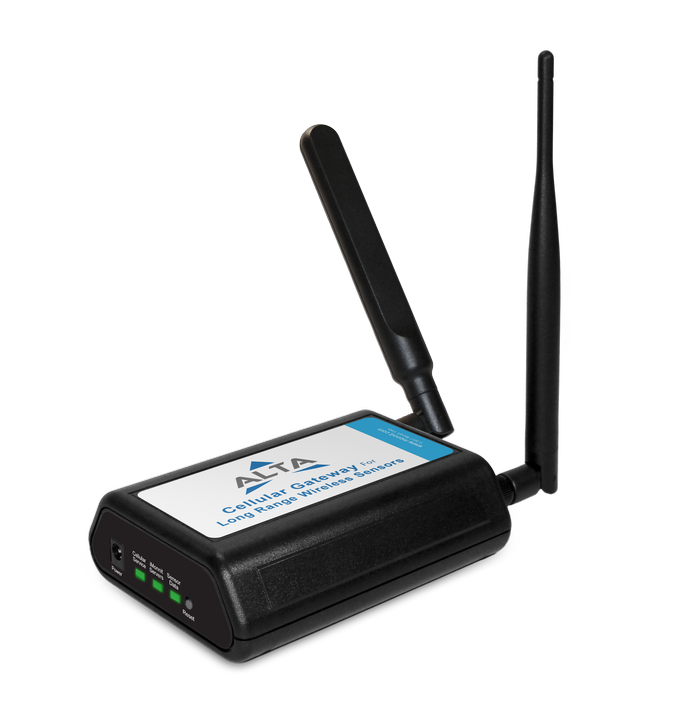

Monnit Wireless Cellular Gateways
Allow your Monnit Wireless Sensors to communicate with the iMonnit Online via cellular transmission
Don’t have an existing network connection where you need it most? ALTA Cellular Gateways allow your Monnit Wireless Sensors to communicate with the iMonnit Online Wireless Sensor Monitoring and Notification System via cellular transmission. They are the perfect solution for remote locations, or where an existing internet connection is not an option.
The ALTA Cellular Gateways are based on the latest 4G LTE and Dual-band CDMA or 3G wireless protocols and come integrated with Monnit’s wireless access point network (WAN) for use with all Monnit wireless sensors.
The ALTA Cellular Gateway is an advanced all wireless M2M gateway that enables fast time-to-market solutions for a wide range of M2M and partner applications as well. Monnit’s ALTA Cellular Gateway is specifically designed to respond to the increasing market need for global technology that accommodates a variety of vertical M2M application segments and remote wireless sensor management solutions.
• Wireless range of 1,000+ feet through 12-14 walls *
• Frequency Hopping Spread Spectrum (FHSS)
• Improved interference immunity
• Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
• 16,000 sensor message memory
• Over the air updates (future proof)
• Plug & Sense, no hassle set-up
• No PC is required for operation
• Local status LEDs with transmission and online status indicators
• On-line heart-beat control • Power outage notification
• AC power supply or Power-Over-Ethernet * Actual range may vary depending on environment
ALTA CDMA Cellular Gateway Specifications Cellular
| Carriers Supported | Verizon Wireless, Sprint Wireless, U.S. Cellular | ||||||
| CDMA | Dual Band CDMA | ||||||
| Frequency Range: 800 / 1900 MHz | |||||||
| Antenna | Articulating Dipole, Connector: SMA, Gain (dBi): 1.5 | ||||||
| Power | |||||||
| Input Power | 5.5 VDC @ 900 mA | ||||||
| Optional Battery Backup | Battery Type: Rechargeable Lithium Polymer | ||||||
| Battery Duration: Up to 24 hours | |||||||
| Battery Cycle Life: 500 times | |||||||
| Mechanical | |||||||
| LEDs | Cellular Status LED, Online Status LED, Sensor Network Status LED | ||||||
| Device Memory: | 50,000 sensor messages | ||||||
| (Sensor messages will be stored in the event of Internet outage and | |||||||
| transferred when connection is restored) | |||||||
| Enclosure | ABS | ||||||
| Dimensions | 5.004 x 3.8 x 1.51 in. | ||||||
| Weight | 7 ounces | ||||||
| Environmental | |||||||
| Operating Temperature | -10 to +45°C (14 to 113°F) | ||||||
| Storage Temperature | -20 to +60°C (-4 to 140°F) | ||||||
| Wireless | |||||||
| Wireless Range | 1,000+ ft. non-line-of-sight | ||||||
| Security | Encrypt-RF™ (256-bit key exchange and AES-128 CTR) | ||||||
• Remote Location Monitoring
• Shipping and Transportation
• Agricultural Monitoring
• Vacant Property Management
• Vacation Home Property Management
• Construction Site Monitoring
• Data Center Monitoring
