Fourtec DataNet Datalogging/ Data Acquisition System

DataNet

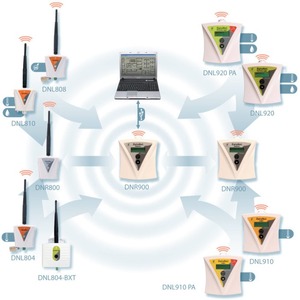

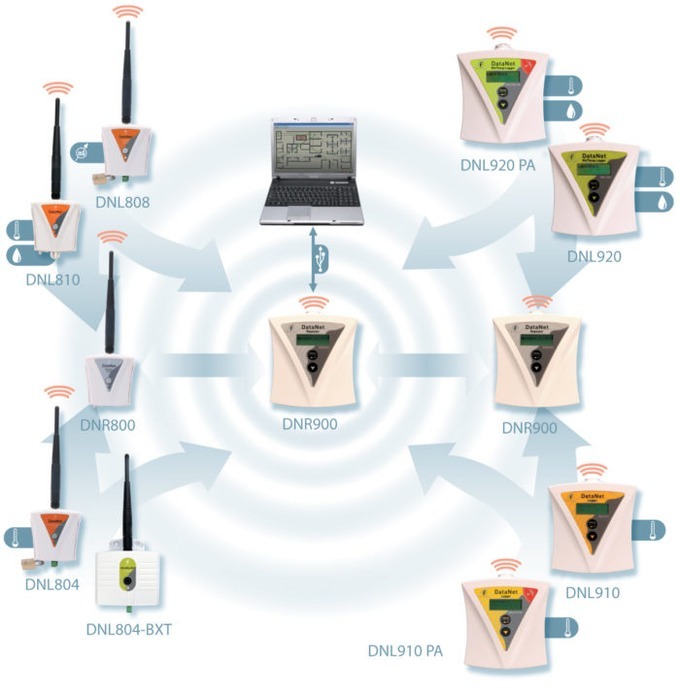

DataNet hardware and software solution empowers any organization to control distributed networks from a single location. Using Zigbee wireless mesh network configuration, allowing for 65,000 units in each network, DataNet enables real-time monitoring of multiple test points in a single operation.

Reliable bi-directional transmission ensuring no data loss
Transmission range can be constantly expanded by adding additional network units
Minimal costs thanks to wire-free infrastructure
Portable units facilitating easy deployment in various environments
Receivers, recognizing up to 8 end units and 16 Repeaters
Repeaters, recognizing up to 24 end units and 16 Repeaters (simultaneously).

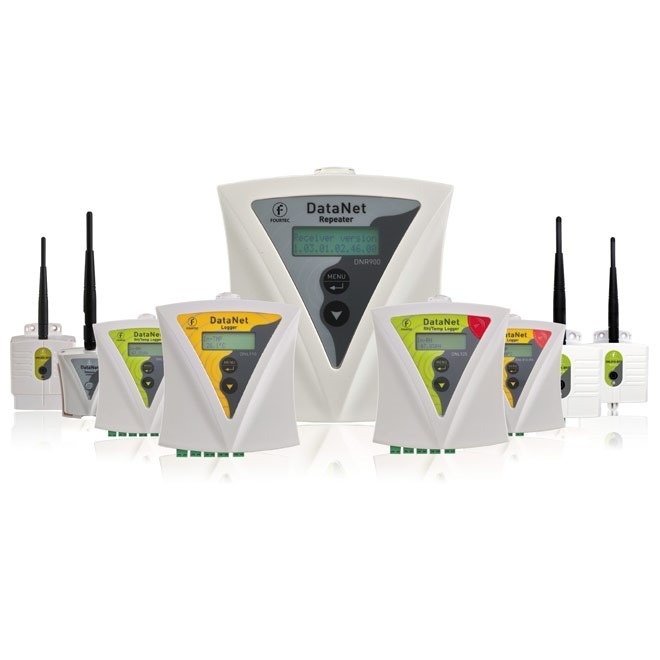

Some examples of the range:

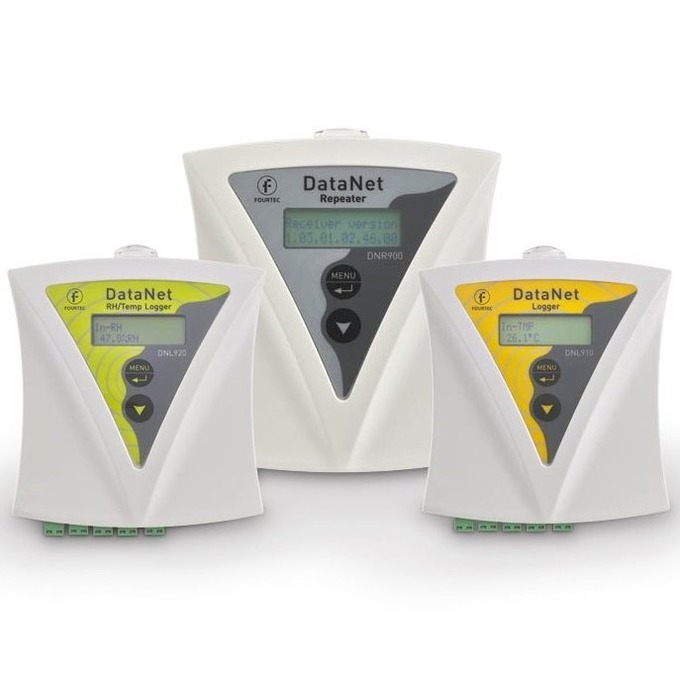

DNL910 and DNL920	Internal temperature and/or humidity loggers. Supports four external inputs: 4 to 20 mA, 0 to 1 V, 0 to 50 mV, PT-100 2 wires, Thermocouples (J, K and T), Dry Contact, Pulse Counter and Frequency. Rechargeable battery operation.
DNL910 PA and DNL920 PA	DNL910 PA and DNL920 PA Loggers with integrated power amplifier for extended range. Same supported external and internal sensors as DNL910 and DNL920.
DNR900 Receiver/Repeater	DNR900 Receiver/Repeater The heart of the system controls and collects the data from the end units. Also suitable for extending the system range.
Mini DataNet	Mini DataNet Models Cost-effective wireless single and dual channel loggers, battery operated only DNL804 (External 4 to 20 mA) DNL808 (External NTC 10K?) DNL810 (Internal Tem/RH).
DNR800 Mini Repeater	DNR800 Mini Repeater For extending
