Wireless Motion Detection Sensor
The ALTA wireless motion detection sensor uses an infrared sensor to accurately detect movements made by people/animals within 15 ft (4.5 m) range
Principle of Operation

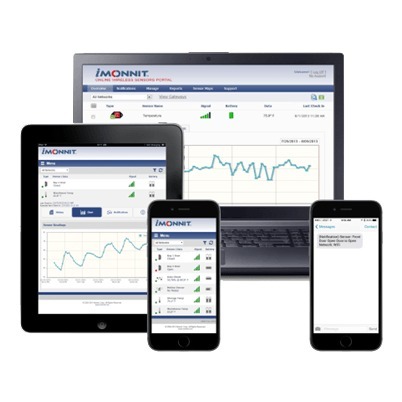

The Wireless Motion Detection Sensor detects motion and movement using infrared technology. When the sensor detects movement it communicates with the iMonnit Online Sensor Monitoring and Notification System. iMonnit stores all data in the online system where the data can be reviewed and exported as a data sheet or graph. Notifications can be set up through the online system to alert the user when motion has been detected.
• Software adjustable range (15 ft/12 ft/9 ft)
Features of Monnit ALTA Sensors
• Wireless range of 1,200+ feet through 12+ walls *
• Frequency-Hopping Spread Spectrum (FHSS)
• Improved interference immunity • Improved power management for longer battery life ** (12+ years on AA batteries)
• Encrypt-RF® Security (Diffie-Hellman Key Exchange+AES-128 CBC for sensor data messages)
• Onboard data memory stores up to 512 readings per sensor:
-10-minute heartbeats = 3.5 days
-2-hour heartbeats = 42 days
• Over-the-air updates (future proof)
• Free iMonnit basic online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email
* Actual range may vary depending on environment.
** Battery life is determined by sensor reporting frequency and other variables. Other power options are also available.
ALTA Commercial Coin Cell Wireless Motion Detection Sensor | Technical Specifications
| Supply voltage | 2.0–3.8 VDC * | |||||
| Current consumption | 1.0 µA (Sleep) | |||||
| 570 µA (MCU idle) | ||||||
| 2.5 mA (MCU active) | ||||||
| 5.5 mA (radio RX mode) | ||||||
| 22.6 mA (radio TX mode) | ||||||
| Operating temperature range (board circuitry and coin cell) | -7°C to +60°C (20°F to +140°F) ** | |||||
| Optimal battery temperature range (coin cell) | +10°C to +50°C (+50°F to +122°F) | |||||
| Software adjustable sensor detection range | 15 ft (4.5 m)/12 ft (3.7 m)/9 ft (2.7 m) | |||||
| PIR element current consumption | 3 μA | |||||
| Sensor warmup time | 7 Seconds | |||||
| Integrated memory | Up to 512 sensor messages | |||||
| Wireless range | 1,200+ ft non-line-of-sight | |||||
| Security | Encrypt-RF® (256-bit key exchange and AES-128 CTR) | |||||
| Weight | 0.7 ounces | |||||

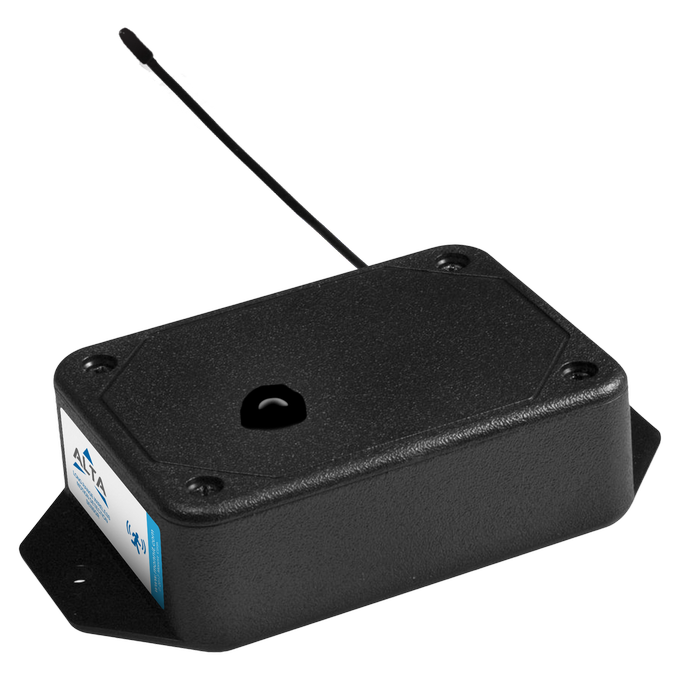

ALTA Commercial AA Wireless Motion Detection Sensor | Technical Specifications
| Supply voltage | 2.0–3.8 VDC (3.0–3.8 VDC using power supply) * | ||||
| Current consumption | 1.0 µA (Sleep) | ||||
| 570 µA (MCU idle) | |||||
| 2.5 mA (MCU active) | |||||
| 5.5 mA (radio RX mode) | |||||
| 22.6 mA (radio TX mode) | |||||
| Operating temperature range (board circuitry and batteries) | -18°C to 55°C (0°F to 130°F) using alkaline | ||||
| -40°C to 85°C (-40°F to 185°F) using lithium ** | |||||
| Optimal battery temperature range (AA) | +10°C to +50°C (+50°F to +122°F) | ||||
| Software Adjustable Sensor Detection Range | 15 ft (4.5 m)/12 ft (3.7 m)/9 ft (2.7 m) | ||||
| PIR Element Current consumption | 3 μA | ||||
| Sensor Warmup Time | 7 Seconds | ||||
| Integrated memory | Up to 512 sensor messages | ||||
| Wireless range | 1,200+ ft non-line-of-sight | ||||
| Security | Encrypt-RF® (256-bit key exchange and AES-128 CTR) | ||||
| Weight | 3.7 ounces | ||||
Example Applications
• Monitor area access.
• Detect when people enter a room.
• Many additional applications
