Wireless Pulse Counter - Single Input

Description Features Configuration Application

The ALTA wireless pulse counter can be connected to the pulse output of a system (water meter, power meter, etc.) to count the number of actuations within a given time frame.

• Counts the number of pulses in given time frame, or aggregates pulses in an ongoing accumulation.

• 3 filter settings: No filter, 4 Hz filter, and 40 Hz filter.

• Capable of counting passive (open/closed switch) and active (Up to +15 VDC) pulses.

• Capable of counting the positive edge, negative edge, or both edges of a pulse.



Principle of Operation

The ALTA wireless pulse counter is an electronic counter capable of counting passive(open/closed switch) or active (Up to +15 VDC) pulses. The counter includes 3 software configurable low pass filter settings (No filter, 40 Hz filter, or 4 Hz filter). The pulse counter filters pulses with pulse widths greater than those designated in the technical specifications. For example, if the 4Hz filter is set, the pulse counter will count a pulse if the pulse width is longer than 250 ms, if the pulse width is shorter than 250 ms it will be completely or partially filtered (See the Technical Specification table for detailed filtering information).

The sensor can be set to send an alert through the iMonnit Online Sensor Monitoring and Notification System when a given number of pulses have been reached within a set time frame. Alerts from the iMonnit system are sent as they happen (in real time) via SMS text or email.

•   Wireless range of 1,200+ feet through 12+ walls *

•   Frequency-Hopping Spread Spectrum (FHSS)

•   Improved interference immunity

•   Improved power management for longer battery life **(12+ years on AA batteries)

•   Encrypt-RF® Security (Diffie-Hellman Key Exchange+AES-128 CBC for sensor data messages)

•   Onboard data memory stores up to 512 readings per sensor:

- 10-minute heartbeats = 3.5 days

- 2-hour heartbeats = 42 days

•   Over-the-air updates (future proof)

•   Free iMonnit basic online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email

*Actual range may vary depending on environment.

**Battery life is determined by sensor reporting frequency and other variables. Other power options are also available.

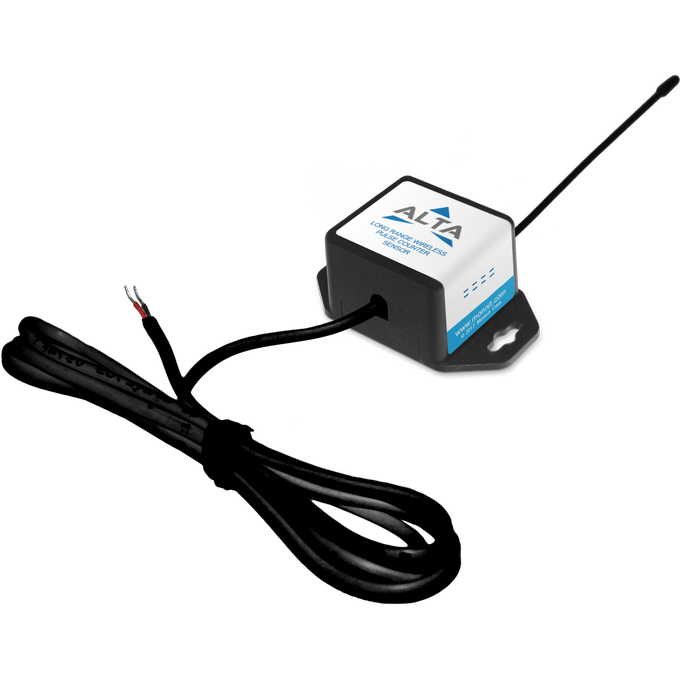

ALTA Commercial Coin Cell Wireless Pulse Counter | Technical Specifications

  Supply voltage     2.0–3.8 VDC *
  Current consumption     0.2 µA (sleep mode), 0.7 µA (RTC sleep), 570 µA (MCU idle),
            2.5 mA (MCU active), 5.5 mA (radio RX mode), 22.6 mA
            (radio TX mode)
  Operating temperature range (board circuitry and coin cell) -7°C to +60°C (20°F to +140°F) **
  Optimal battery temperature range (coin cell)     +10°C to +50°C (+50°F to +122°F)
  Maximum count     4294967296 (32 bit number)
  Input voltage     0 to 15 Volts DC
  Detection wires     High impedance (2-wire), 3 ft length
  Counter operation     Positive and/or negative edge pulses
  Compatibility     Open collector NPN switches (passive)
            Mechanical switches (passive)
            0–15V driven source (active)***
  Max input pulse rate/min pulse width with passive input ****   Max Pulse Rate Min Pulse Width*****
            No Filter ~ 2 KHz ~ 0.5 ms
            4 Hz Filter ~ 4 Hz ~ 250 ms
            40 Hz Filter ~ 40 Hz ~ 25 ms
  Integrated memory     Up to 512 sensor messages
  Wireless range     1,200+ ft non-line-of-sight
  Security     Encrypt-RF® (256-bit key exchange and AES-128 CTR)
  Weight     0.7 ounces

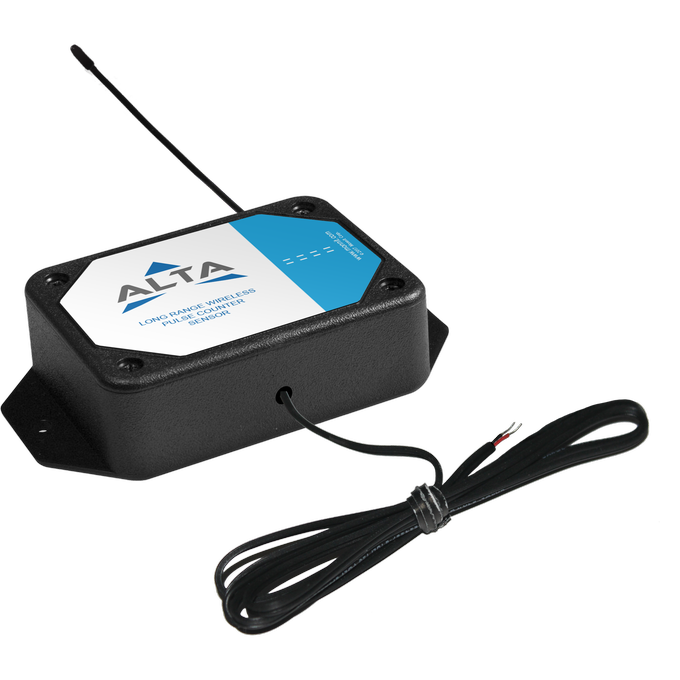

  ALTA Commercial AA Wireless Pulse Counter | Technical Specifications

Supply voltage         2.0–3.8 VDC (3.0–3.8 VDC using power supply) *
Current consumption         0.2 µA (sleep mode), 0.7 µA (RTC sleep), 570 µA (MCU idle),
              2.5 mA (MCU active), 5.5 mA (radio RX mode),
              22.6 mA (radio TX mode)
Operating temperature range (board circuitry and batteries)     -18°C to 55°C (0°F to 130°F) using alkaline
              -40°C to 85°C (-40°F to 185°F) using lithium **
Optimal battery temperature range (AA)         +10°C to +50°C (+50°F to +122°F)
Maximum count         4294967296 (32 bit number)
Input voltage         0 to 15 Volts DC
Detection wires         High impedance (2-wire), 3 ft length
Counter operation         Positive and/or negative edge pulses
Compatibility         Open collector NPN switches (passive)
              Mechanical switches (passive)
              0–15V driven source (active)***
Max input pulse rate/min pulse width with passive input ****
              No Filter
              4 Hz Filter
              40 Hz Filter
Integrated memory         Up to 512 sensor messages
Wireless range         1,200+ ft non-line-of-sight
Security         Encrypt-RF® (256-bit key exchange and AES-128 CTR)
Weight         0.7 ounces

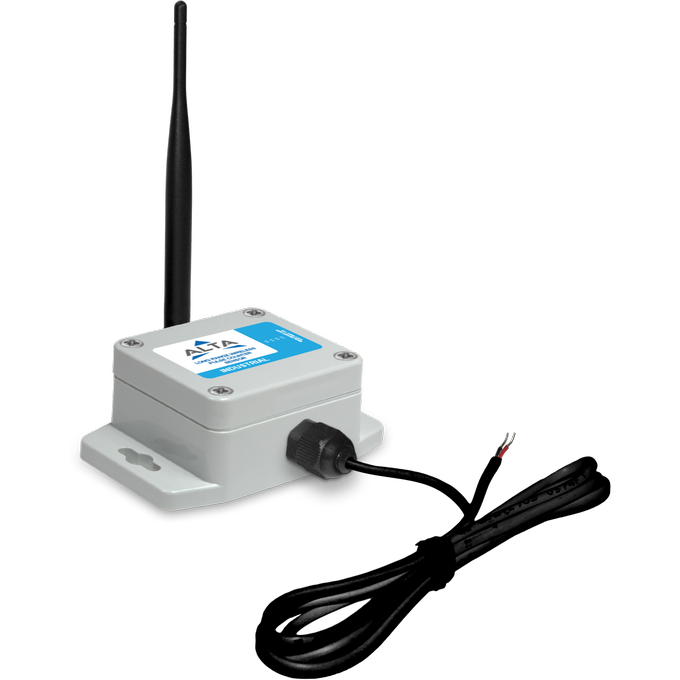

  ALTA Industrial Wireless Pulse Counter | Technical Specifications

Supply voltage           2.0–3.8 VDC (3.0–3.8 VDC using power supply) *
Current consumption           0.2 µA (sleep mode), 0.7 µA (RTC sleep), 570 µA (MCU idle),
            2.5 mA (MCU active), 5.5 mA (radio RX mode),
            22.6 mA (radio TX mode)
Operating temperature range (board circuitry and battery) -40°C to +85°C (-40°F to +185°F)
Included battery Max temperature range -40° to +85°C  (-40° to +185°F)
  Capacity 1500 mAh
Optional solar feature Solar panel 5VDC/30mA  (53mm x 30mm)
  Charging temperature range 0° to 45°C (32° to 113°F)
  Max temperature range -20° to 60°C (-4° to 140°F)
  Included rechargeable battery 600 mAh/>2000 charge cycles (80% of initial capacity)
  Solar efficiency Optimized for high and low-light operation ***
  Charging efficiency 5% **
  Luminous sustainability Minimum of 10,000 LUX **
Maximum count           4294967296 (32 bit number)
Input voltage           0 to 15 Volts DC
Detection wires           High impedance (2-wire), 3 ft length
Counter operation           Positive and/or negative edge pulses
Compatibility           Open collector NPN switches (passive), mechanical switches
            (passive), 0–15V driven source (active) ****
Max input pulse rate/min pulse width with passive input *****     Max Pulse Rate Min Pulse
                  Width******
            No Filter   ~ 2 KHz ~ 0.5 ms
            4 Hz Filter   ~ 4 Hz ~ 250 ms
            40 Hz Filter   ~ 40 Hz ~ 25 ms
Integrated memory           Up to 512 sensor messages
Wireless range           1,200+ ft non-line-of-sight
Security           Encrypt-RF® (256-bit key exchange and AES-128 CTR)
Weight           4.7 ounces
Enclosure rating           NEMA 1, 2, 4, 4x, 12 and 13 rated, sealed and weather proof
UL rating           UL Listed to UL508-4x specifications (File E194432)

•   Water, gas and air flow meters

•   Door access counter

•   Turn style counting

•   Forklift seat switches

•   Button or switch integration

•   Production line tracking

•   Many additional applications
