Wireless Water Detection Sensors
Principle of Operation
The ALTA Wireless Water Detection Sensor detects when water is present by completing the circuit between the two leaded wires. When water is present the sensor will immediately turn on the RF radio and transmit the data to the wireless gateway and iMonnit Online Sensor Monitoring and Notification System, allowing the user to immediately receive an SMS text or email alert. The sensor can be configured to detect both the presence and non-presence of water.
Water Detection
• 3 ft leaded wires
• Immediately detects water
• Wireless range of 1,200+ feet through 12+ walls *
• Frequency-Hopping Spread Spectrum (FHSS)
• Improved interference immunity
• Improved power management for longer battery life ** (12+ years on AA batteries)
• Encrypt-RF® Security (Diffie-Hellman Key Exchange AES-128 CBC for sensor data messages)
• Onboard data memory stores up to 512 readings per sensor:
-10-minute heartbeats = 3.5 days
-2-hour heartbeats = 42 days
• Over-the-air updates (future proof)
• Free iMonnit basic online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email
*Actual range may vary depending on environment.
**Battery life is determined by sensor reporting frequency and other variables. Other power options are also available.

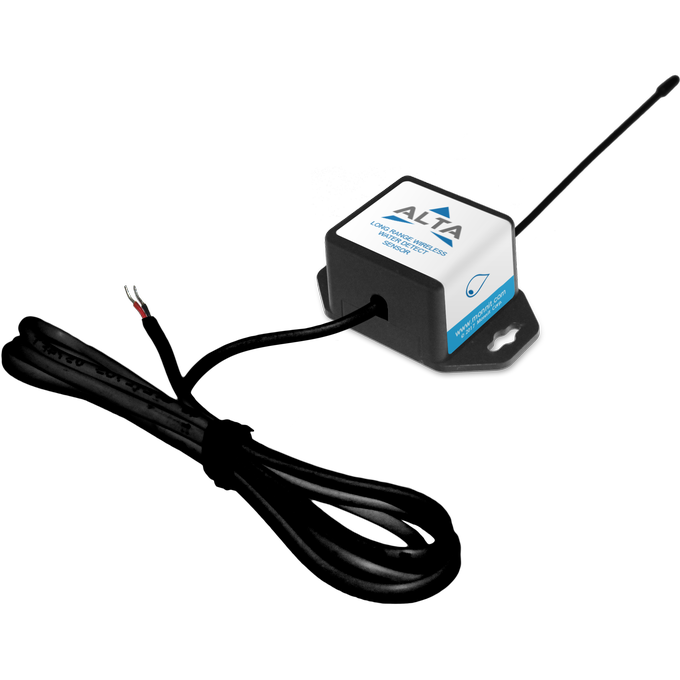

ALTA Commercial Coin Cell Wireless Water Detection Sensor | Technical Specifications
| Supply voltage | 2.0–3.8 VDC * | ||||
| Current consumption | 0.2 µA (sleep mode), 0.7 µA (RTC sleep), 570 µA (MCU idle), | ||||
| 2.5 mA (MCU active), 5.5 mA (radio RX mode), 22.6 mA | |||||
| (radio TX mode) | |||||
| Operating temperature range (board circuitry and coin cell) | -7°C to +60°C (20°F to +140°F) | ||||
| Optimal battery temperature range (coin cell) | +10°C to +50°C (+50°F to +122°F) | ||||
| Lead wire length | 3 ft (36 in) | ||||
| Detection wires | High impedance | ||||
| Integrated memory | Up to 512 sensor messages | ||||
| Wireless range | 1,200+ ft non-line-of-sight | ||||
| Security | Encrypt-RF® (256-bit key exchange and AES-128 CTR) | ||||
| Weight | 0.7 ounces | ||||

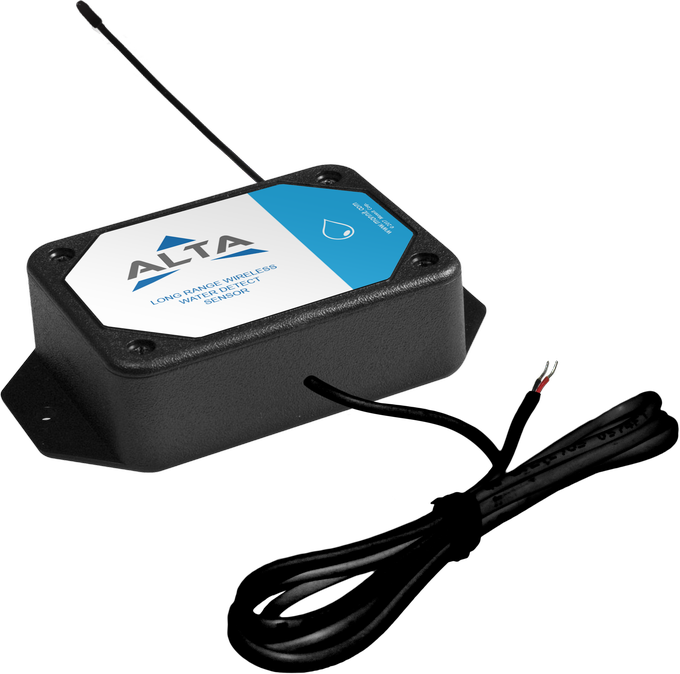

ALTA Commercial AA Wireless Water Detection Sensor | Technical Specifications
| Supply voltage | 2.0–3.8 VDC (3.0–3.8 VDC using power supply) * | ||||
| Current consumption | 0.2 µA (sleep mode), 0.7 µA (RTC sleep), 570 µA (MCU idle), | ||||
| 2.5 mA (MCU active), 5.5 mA (radio RX mode), 22.6 mA | |||||
| (radio TX mode) | |||||
| Operating temperature range (board circuitry and batteries) | -18°C to 55°C (0°F to 130°F) using alkaline | ||||
| -40°C to 85°C (-40°F to 185°F) using lithium | |||||
| Optimal battery temperature range (AA) | +10°C to +50°C (+50°F to +122°F) | ||||
| Lead wire length | 3 ft (36 in) | ||||
| Detection wires | High impedance | ||||
| Integrated memory | Up to 512 sensor messages | ||||
| Wireless range | 1,200+ ft non-line-of-sight | ||||
| Security | Encrypt-RF® (256-bit key exchange and AES-128 CTR) | ||||
| Weight | 3.7 ounces | ||||

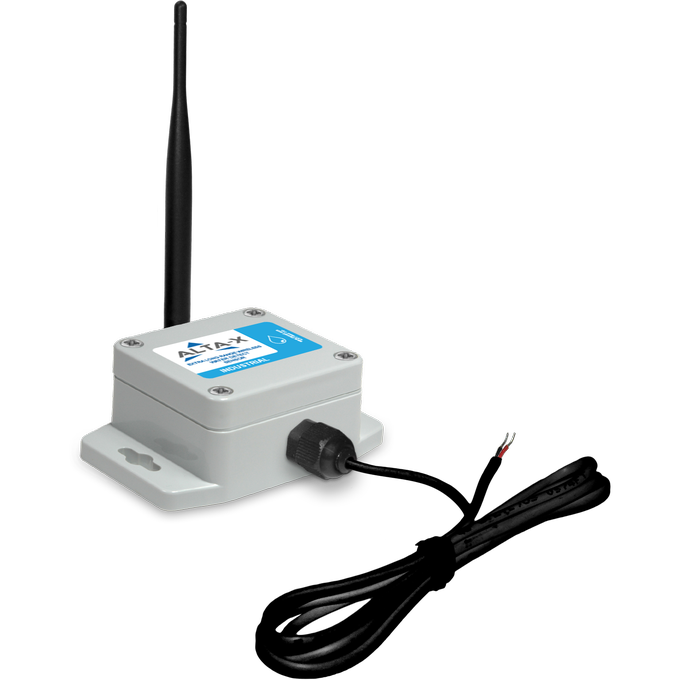

ALTA Industrial Wireless Water Detection Sensor | Technical Specifications
| Supply voltage | 2.0–3.8 VDC (3.0–3.8 VDC using power supply) * | |||||
| Current consumption | 0.2 µA (sleep mode), 0.7 µA (RTC sleep), 570 µA (MCU idle), | |||||
| 2.5 mA (MCU active), 5.5 mA (radio RX mode), 22.6 mA (radio | ||||||
| TX mode) | ||||||
| Operating temperature range (board circuitry and battery) | -40°C to +85°C (-40°F to +185°F) | |||||
| Included battery | Max temperature range | -40° to +85°C (-40° to +185°F) | ||||
| Capacity | 1500 mAh | |||||
| Optional solar feature | Solar panel | 5VDC/30mA (53mm x 30mm) | ||||
| Charging temperature range | 0° to 45°C (32° to 113°F) | |||||
| Max temperature range | -20° to 60°C (-4° to 140°F) | |||||
| Included rechargeable battery | 600 mAh/>2000 charge cycles (80% of initial capacity) | |||||
| Solar efficiency | Optimized for high and low-light operation ** | |||||
| Charging efficiency | 40%*** | |||||
| Luminous sustainability | Minimum of 250 LUX *** | |||||
| Lead wire length | 3 ft. (36 in.) | |||||
| Detection wires | High impedance | |||||
| Integrated memory | Up to 512 sensor messages | |||||
| Wireless range | 1,200+ ft non-line-of-sight | |||||
| Security | Encrypt-RF® (256-bit key exchange and AES-128 CTR) | |||||
| Weight | 4.7 ounces | |||||
| Enclosure rating | NEMA 1, 2, 4, 4x, 12 and 13 rated, sealed and weather proof | |||||
| UL rating | UL Listed to UL508-4x specifications (File E194432) | |||||
- Water heater monitoring
- Plumbing leak detection
- Sump monitoring
- Boat bilge monitoring
- Reservoir level monitoring
