Proportional Gas Mixer - MAP Mix Focus
Mid-capacity gas mixer for MAP packaging lines
With the launch of Dansensor MAP Mix Focus we are introducing a mid-capacity gas mixer to our gas mixer portfolio, offering customers a broader selection of gas mixing options.
The Dansensor MAP Mix Focus uses an electronic mixing principle to mix food-grade MAP gases accurately and reliably. With the ability to monitor the gas mixing process in real time, with a coherent on-screen overview that includes precise information about current gas flow, actual gas mix and total gas consumption your Quality Control Manager and operator have better control over the mixing process.
The Dansensor MAP Mix Focus is suitable for packaging machines with both direct gas feed and buffer tanks.
• Stable gas mix regardless of inlet fluctuations in gas pressure
• Low pressure drop means less wasted gas
• Multiple access levels minimizes risk of human error
• Configure preset programs to save time when switching between products on the line
• Clear on-screen overview of gas mix and gas pressure for improved quality assurance
• Early audio and visual alarms for swift and effective corrective actions
Features
- Models for 2 or 3 gas mixing
- 3 customizable mixture presets

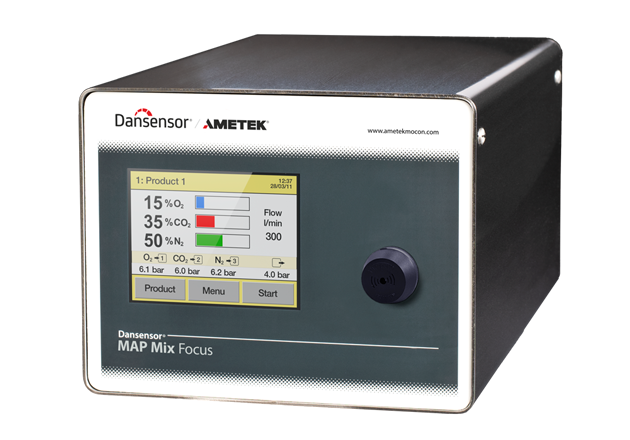

- Intuitive touch screen display
- Real time display of actual gas mix, inlet and outlet pressures and flow rate
- Sensors warn when supply gas levels low (audio/visual)
- Wide inlet pressure range (2-10 bar)
- Dynamic mass flow controllers regulate the flow of gases for accurate automatic mixing
- MAP Mix Provectus
- MAP Mix Focus
- MAP Mix 9001 ME
- Buffer Tank
Gas mixing for medium-capacity MAP packaging lines with precise, user-friendly flow control and adjustments.
Gas flow capacity is typically 20-350 liters per minute for the 2-gas mixer or 20-710 liters per minute for the 3-gas version. Maximum capacity per source gas is 250 L/min.
For food, beverage, pharmaceutical, and other products packaged in modified atmosphere packaging (MAP).
