LeakPointer H2O - Bubble leak detection

Description Features Configuration Application

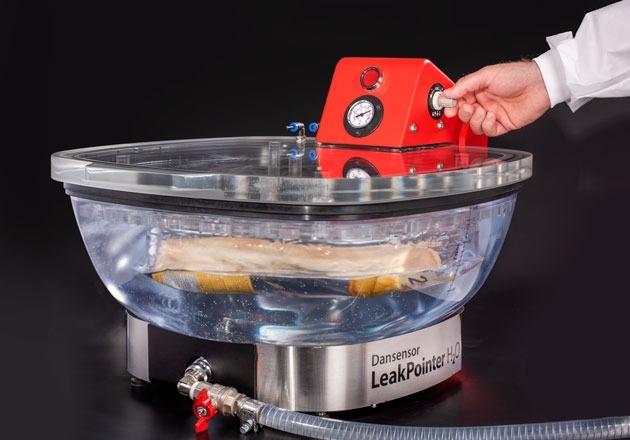

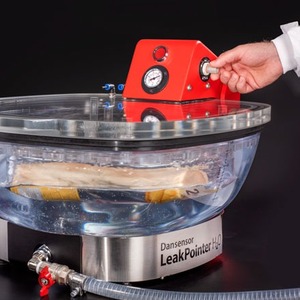

The Dansensor® LeakPointer® H2O  is a package leak detector which helps you pinpoint even the smallest leaks. This instrument helps you conduct visual leak tests (bubble test) on all types of flexible, semi-rigid and rigid packages, regardless of whether they have ample headspace, like MAP packages, or use other packaging methods with little or no headspace, such as vacuum or skin packaging.

Benefits

  • Test package integrity and find exactly where leaks are located
  • Test packages with or without headspace and regardless of gas mixture
  • Ergonomically designed for operator safety and convenience
  • Mounted lid avoids mess and requires no extra table space
  • Easy to drain and clean
  • Simple installation and operation
  • No adjustment required for different package sizes or type

Features

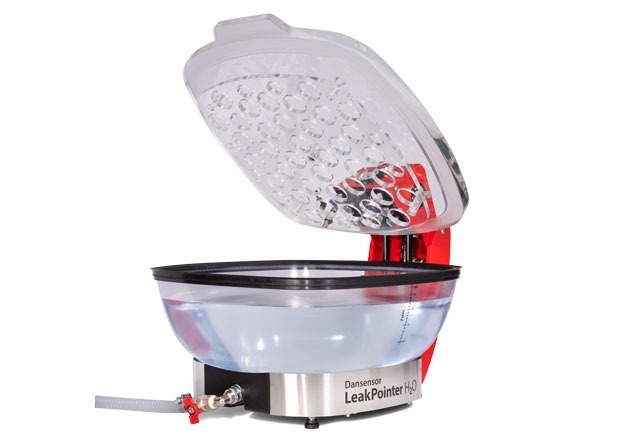

  • Mounted, pneumatic lid – opens/closes effortlessly and stops messy dripping

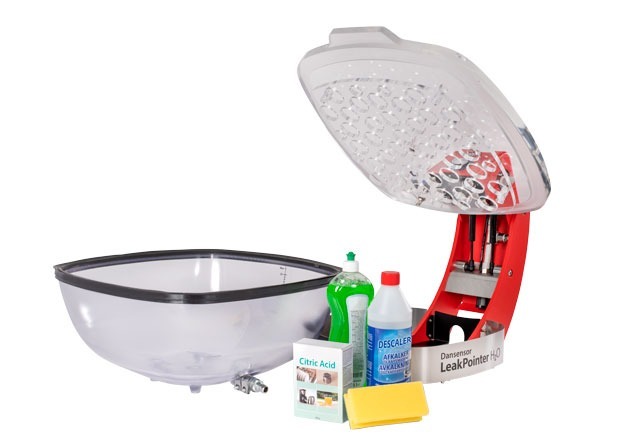

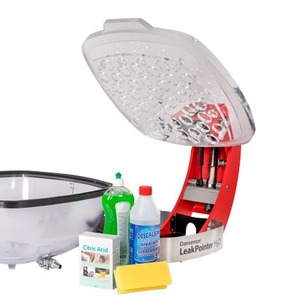

  • Removable, rounded tub for easy cleaning
  • Quick-release drain hose for filling and emptying the tub without heavy lifting
  • Easy-to-read vacuum gauge
  • Balance hose allows testing on all types of packages (e.g. MAP, vacuum packed, minimal headspace, etc.)
  • Manually adjustable pressure from -50 to -800 mbar
  • Vacuum generation with compressed air only (no electrical connection required)
  • Find the right fill-volume every time with mounted volume scale on tub
  • Reversible tub gives convenient access to drain valve (face front or back)
  • Complies with ASTM D3078
  • Optional digital pressure meter ensures accurate tests, even on difficult packages


Specifications

Package types
Flexible, semi-rigid and rigid packages
Test types
Bubble Test
Test package size(max)
Smaller than tub dimensions
Tube dimension (WxDxH) and volume
 400 mm x 400 mm x 150 mm (15.7“ x 15.7” x 5.9”) (approx. size due to tapered design); ~ 25 liter volume (6.6 US gal) to the level of the hole plate
 Fill time (with vacuum fill)
 Up to 1 minute
Test time
Unlimited ( control manually)
Vacuum pressure
-50 to -800 mbar (-0.7 to -11.6 psi)
Dimensions (WxDxH) and weight
Lid open: 526 mm x 640 mm x 720 mm (20.7” x 25.2” x 28.3”); 22 kg (48.5 lbs)
Air supply pressure and connection
6.0-7.0 bar
Ø6/4mm tube     DIN ISO 8573-1:2010 [4:4:3]
Air consumption
Max 185 L/min
Compliance
CE, China RoHS II
Standards
ASTM D3078

Applications:

Visual leak testing under water with vacuum (bubble)
ASTM Standards:

ASTM D3078 (Standard Test Method for Determination of Leaks in Flexible Packaging by Bubble Emission)



Bubble leak detection system for flexible, rigid and semi-rigid packages.

  • Find exactly where leaks are located
  • Test packages with or without headspace
  • Simple installation and operation
  • Mounted lid, removable tub and drain hose for convenience and easy cleaning
  • Performs bubble emission test (ASTM D3078)
