AQUATRAN 3/40 WVTR Analyzer for Packages

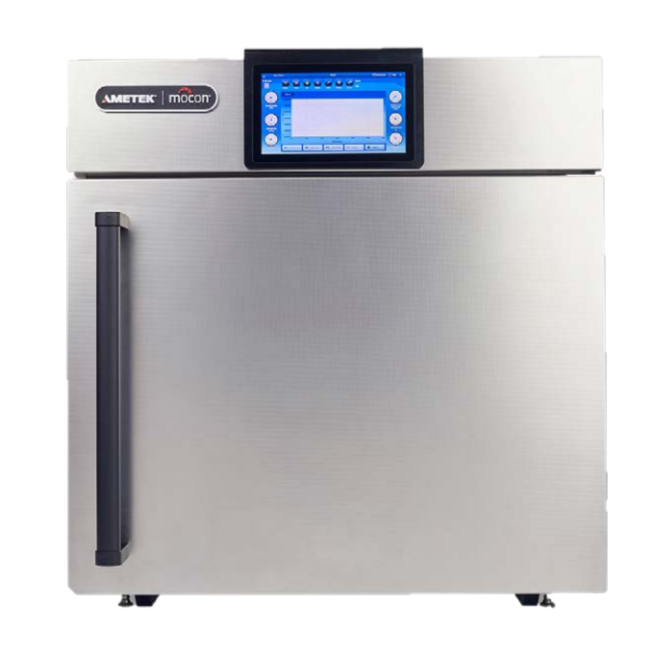

The AQUATRAN 3/40 is the next evolution in whole package testing for Water Vapor Transmission Rate (WVTR).  This advanced analyzer integrates MOCON’s proven WVTR analyzer system with a precision environmental chamber to elevate package testing to the next level in accuracy, repeatability and ease of use.  With special functions designed for package testing, they greatly reduce overall test time while the new package testing cartridge designs offer simple sample preparation and improved repeatability of test results.  They feature 4 independent cells with changeable test cartridges that allow a wide variety of package sizes and types to be easily and accurately tested, many without the use of epoxy.

Highest Accuracy Package Testing

  • MOCON’s Patented Modulated Infrared sensor is the only modulated sensor system on market meeting ASTM F1249
  • Low detection levels down to 0.000025 g/(pkg x day)
  • Fully automated temperature, flow and RH controls simplify testing and provide unparalleled repeatability

Ease of Use

  • Removable test cartridges allow fast sample exchange with the touch of 1 button
  • Different cartridge options designed to make mounting and testing for a wide variety of package types simple, accurate, and repeatable
  • Advanced automatic purge and conditioning capability for packages reduce overall testing time
  • Touch screen interface allows complete control and monitoring of all testing variables throughout the testing process

The AQUATRAN 3/40 package testing analyzer can test the Water Vapor Transmission Rate (WVTR) on both films and packages from low to high barriers. It uses the MOCON’s patented long life modulated IR sensor which is the basis for the ASTM standard F1249.  The 4 independent test cells can perform different tests in parallel under precisely controlled environmental conditions from 10 to 50 degrees C and a range of 30 to 90% humidity in the chamber.

A variety of testing cartridges are available to easily and accurately test trays, bottles, flexible containers, pouches, cups, pods, caps, closures, cartons, films and just about any other type of sample. Custom designed cartridges are also available to simplify sample preparation and improve testing repeatability.

For more than 25 years, MOCON’s water vapor series of instruments have been the most trusted and longest lasting on the market. The AQUATRAN 3/40 is the newest option available that takes whole package testing to the next level allowing brand owners and packaging service providers the ability to reliably test the shelf life of their finished packages. It is the perfect complement to any testing laboratory who frequently tests complete packages.




Capabilities - Model Specific


Units

3/40 L

Test Ranges

g/(m2 x day)

0.005 to 100

g/(pkg x day)

0.000025 to 0.5

Resolution

g/(pkg x day)

0.000001

Repeatability

g/(m2 x day)

0.005 or 2%*

*whichever is greater

Capabilities - All Models

Ox-Tran 2/40 Series

Units

Test Temperature Range

10° C to 50° C ± 0.2 ° C

Controlled RH Testing Range

30 to 90% ± 5%

Chamber Size

25.5"W x 17"D x 12"H

Other Specifications:
Physical Requirements

  • 35.5” H x 33.0” W x 29.75” D (88.9 cm x 83.8 cm x 75.6 cm)
  • 225 Lbs. (102 kg)
Electrical Requirements
  • Voltage: 100 - 240 VAC 50/60 Hz
  • Maximum Power Draw: 500 VA
Laboratory Requirements

Temperature

Operation

22 °C ± 2 °C

Storage

10 °C to 30 °C

Humidity

Operation

10% to 60% RH (non-condensing)

Storage

5% to 85% RH (non-condensing)

Gas Supply Requirements

Carrier Gas

Gas Composition

Nitrogen (99.7% or better)

Supply Pressure, Nominal

25 PSI, (1.72 Bar), (172 kPa)

 Test Gas Gas Composition  Dry compressed Air (ISO 8753-1:2010[1:3:1])
Supply Pressure, Nominal  85 PSI, (5.86 Bar), (586 kPa)
Connectivity
  • Remote Access and Control (requires optional Perm-Net Light software)
  • Standard Ethernet port (100T)
  • Dual USB 2.0 ports (for connection of keyboard, mouse or memory devices)
Compliance Standards

This product is UL and CSA listed using the ETL mark from Intertek Group plc. and is certified to conform to CE.

Conforms to the following internationally recognized safety standards.

  • IEC 61010-1:2010 Third Edition
  • UL 61010-1:2012 Third Edition
  • CAN/CSA-C22.2 No. 61010-1:2012 Third Edition

Conforms to the following internationally recognized EMC standards.

  • EN 61326-1:2013
  • EN 61000-3-2:2006, A1:2009, A2:2009
  • EN 61000-3-3:2013

Conforms to EU Directive 2011/65/EU RoHS Compliance.

Variety of Package and Film Test Cartridges
  • Easy sample prep on the benchtop, many without epoxy
  • One button quick release and loading
  • Single use mounting foil plates simplifies package mounting
  • Specialized cartridge options save time and improve test repeatability
Automated Control Features
  • Flow, Temp, & RH control
  • Test Process Development and Recommendations
  • Programmable Test Sequencing
  • Test report printing and export
  • Sensor Protection
Touchscreen Interface
  • Intuitive automated operation requires less training
  • Built in multi-level user management and data security
  • Event log & trouble shooting guide
  • Save on valuable lab space by eliminating need for PC
Modulated IR Sensor
  • Short exam times reduces overall test time to increase throughput
  • Longer sensor life than others on the market
  • Accurate and repeatable results
  • Most trusted modulated IR sensor that fully complies with ASTM F1249
Advanced Package Testing Features
  • Automatic quick purge to desired settings
  • Automatic high flow conditioning mode
TruSeal®
  • Eliminate Individual Zero
  • Reduced testing time (increase throughput)
  • More repeatable results
  • Allows tool-less mounting of cartridges
Warranty
  • Full 100% parts and workmanship warranty for 12 months
  • Exclusive 4-year warranty on the Modulated IR sensor
