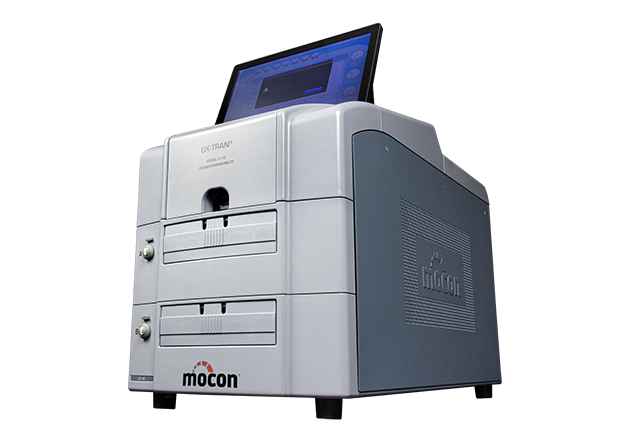

OX-TRAN 2/12 OTR Analyzer

The OX-TRAN 2/12 series analyzers can test the Oxygen Transmission Rate (OTR) on both films and packages from low to high barriers. These analyzers are a lower cost option for reliable OTR analysis. The oxygen permeation measurement systems feature 2 independent cells with changeable horizontal test cartridges that allow a wide variety of sample sizes and types to be easily and accurately tested.

Reliable Results

  • Reliable MOCON Oxygen sensor for accurate repeatable results
  • Detection levels available down to 0.05 cc/(m2*day)
  • Fully automated temperature, flow and RH controls simplify testing and provide unparalleled repeatability (no RH on T Model)
  • Automated test method can start a test by a single press of a button

Versatility

  • Removable test cartridges are interchangeable with various designs allowing different types of barriers and packages to be testing
  • TruSeal gas flushed perimeter sealing can eliminate the need for individual zero in many tests thus shortening overall test times
  • Full graphic touch screen is easy and intuitive to use with little training
MODELS:

The oxygen permeation measurement system has 2 models with different detection ranges precisely suited for these applications.

  • R Model (low to-high barriers) – is MOCON's widest range OTR analyzer with detection range from 0.05 to 28,800 cc/(m2*day) (up to 255,300 cc/(m2*day) with reduced area cartridge).
  • T Model (high transmitters) – designed for breathable barriers in a range beyond what traditional OTR instruments operate from 200 to 65,000 cc/(m2 *day) (up to 576,200 cc/(m2*day) with reduced area cartridge).

Their upper detection limits on any model can be extended with the use the reduced area film test cartridge (factor x9) or atmospheric Oxygen in place of the normal 100% O2 (factor of 4.8) or various size masking.

The series has industry leading features such as removable and interchangeable horizontal test cartridges, easy to use touch screen operator interface, and fully automated testing providing higher throughput in the lab.

For more than 25 years, MOCON’s OX-TRAN series of instruments have been the most trusted and longest lasting on the market. For wide range testing or high transmitter barriers, the OX-TRAN 2/12 series is a great choice offering flexible, reliable OTR testing.

Removable Cartridges
  • Easy sample prep on the benchtop
  • One button release and loading
  • Pneumatic clamping provides more repeatable results
  • Interchangeable cartridge options extend the range and flexibility of the analyzer without tools while maintaining arcuate results
  • Cartridge options include: Reduced area to extend testing range without masks, improved accuracy testing of coated paper-based barriers, adaptors for remote testing of packages or extreme conditions, and custom designs for unique testing requirements.
TruSeal®
  • Gas flush of sample mounting seal protects chamber integrity
  • Lowers background level reducing need to run individual zero
  • Shortened testing time increases throughput
  • More repeatable results
Control Features
  • Fully automated flow, temp, & RH control throughout tests
  • Automatic test method development and recommendations
  • Programmable multi-test sequencing
  • Final test report printing and export
  • Built-in sensor protection
Touchscreen Interface
  • Intuitive automated operation requires less training
  • Built in multi-level user management and data security
  • Event log & trouble shooting guide
  • Save on valuable lab space by eliminating need for PC
Accurate Sensors
  • 2/12 R model has wide range sensor providing reliable, repeatable results
  • 2/12 T model has a unique high range Coulox sensor for high transmitter barriers
Warranty
  • Full 100% parts and workmanship warranty for 12 months
Capabilities - Model Specific


Units

R Model

T Model

Test Ranges (50 cm^2 @100%O2)

cc/(m2 × day)

0.05 to 28,800

200 to 65,000

cc/(100 in2 × day)

0.003 to 1858

12.9 to 4200

cc/(pkg × day)

0.00025 to 144

1.0 to 323

Test Ranges (5.6 cm^2) @100%O2

cc/(m2 × day)

0.44 to 255,300

1770 to 576,200

cc/(100 in2 × day)

0.027 to 16,470

114 to 37,200

cc/(pkg × day)

0.0022 to 1277

9 to 28,600

Resolution

cc/(m2 × day)

0.05

2.0

Repeatability

cc/(m2 × day)

0.05 or 1.5%*

25 or 1%*

Test Temperature Range

10° to 40°C ± 0.2°C

10° to 35°C ± 0.2°C

Controlled RH Testing Range

0 to 90% ± 3%

0 %

*whichever is greater

Capabilities - All Models

Ox-Tran 2/12 Series

Units

Film Size

4” x 4” Std, 2”x2” optional

Film Thickness

Up to 120 Mil

Film Test Area

50 cm2 cartridge std,
5.6 cm2 cartridge optional

Other Specifications (all models):

Physical Specifications

  • 5.5” H x 12” W x 23” D (39.4 cm x 30.4 cm x 58.0 cm)
  • 95 Lbs. (43.1 kg)

Electrical Requirements

  • Voltage: 100 - 240 VAC 50/60 Hz
  • Maximum Power Draw: 700 VA
Laboratory Requirements

Temperature

Operation

22 °C ± 2 °C

Storage

10 °C to 30 °C

Humidity

Operation

20% to 80% RH (non-condensing)

Storage

5% to 85% RH (non-condensing)

Gas Supply Requirements

Carrier Gas

Gas Composition

100% Nitrogen

Supply Pressure, Nominal

29 PSI, (2.0 Bar), (200 kPa)

Test Gas

Gas Composition

100% Oxygen (purity 99.9%)

Supply Pressure, Nominal

29 PSI, (2.0 Bar), (200 kPa)

Connectivity
  • Remote Access and Control (requires optional Perm-Net Light software)
  • Standard Ethernet port (100T)
  • Dual USB 2.0 ports (for connection of keyboard, mouse or memory devices)
Compliance Standards

This product is UL and CSA listed using the ETL mark from Intertek Group plc. and is certified to conform to CE.

Conforms to the following internationally recognized safety standards.

  • IEC 61010-1:2010 Third Edition
  • UL 61010-1:2012 Third Edition
  • CAN/CSA-C22.2 No. 61010-1:2012 Third Edition

Conforms to the following internationally recognized EMC standards.

  • EN 61326-1:2013
  • EN 61000-3-2:2006, A1:2009, A2:2009
  • EN 61000-3-3:2013

Conforms to EU Directive 2011/65/EU RoHS Compliance.

Packaging Films

  • Monolayer
  • Multi-layer
  • Coated Films
  • Coated Paper/paperboard

Specialty Films

  • Gel/lotions

Packages

  • Common food packages
  • Medical packages
  • Bottles/Closures
