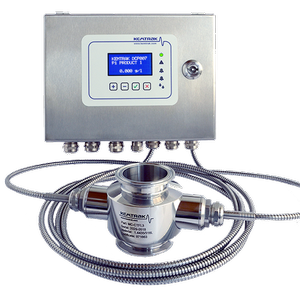

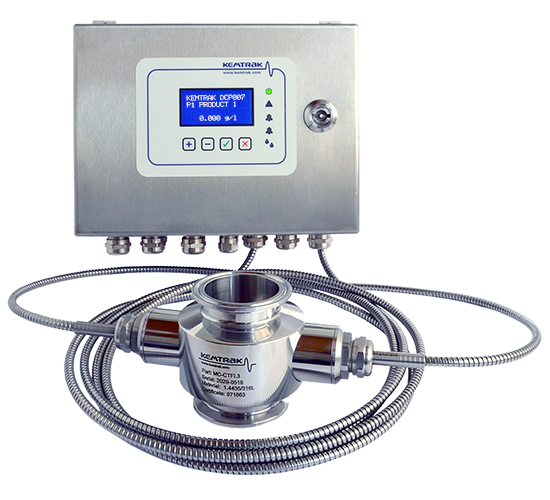

DCP007 Photometer
The Kemtrak 007 analyzer platform is ideally suited for in-line monitoring, utilizing robust fiber optics and highly stable long-life LED light sources to assure accurate and drift-free measurement. By simultaneously measuring at two fixed wavelengths, the DCP007 can optionally use the second wavelength to compensate for sample turbidity and window fouling.
The DCP007 Photometer analyzer platform is ideally suited for in-line monitoring across a broad range of industrial applications. Accurate and drift-free measurement is assured by utilizing robust fiber optics, highly stable long-life LED light sources, and built-in detection circuitry to compensate for background effects such as fouling and turbidity. Industrial grade measurement cells with scratch-resistant sapphire windows contain no electronics or moving parts, making them ideal for both ordinary and hazardous area use. A verification & calibration accessory using NIST-traceable filters assures measurement confidence while saving valuable time and resources
- High performance UV-VIS-NIR absorbance photometer.
- Real-time in-line measurement.
- Robust LED light sources: Stable, drift-free, and long lifetime.
- Dual wavelength: Turbidity and fouling compensation.
- Light source and wavelength: Easy to change in the field.
- Connectivity: 4-20 mA and Modbus TCP/IP
- Light Source: Stable, drift-free robust LED light source.
- Wavelengths: Dual wavelength design measuring at two fixed wavelengths; light source and wavelength are easy to change in the field.
- Measurement Cells: Industrial grade measurement cells with scratch-resistant sapphire windows containing no electronics or moving parts (configured in Tri-Clamp or DIN formats).
- Interface: A built-in graphical internet-based interface that allows remote operation, verification, calibration, and data trending using a standard web browser.
- Calibration & Verification: Verification & calibration accessory utilizing NIST-traceable filters
- Protein and API
- Color Scales (Platinum Cobalt / APHA / Hazen, ASTM D1500, Saybolt / ASTM D156, ICUMSA)
- Chemical concentration (ppm, mg/L, g/L, %)
- Chlorine dioxide, hypochlorite, chlorine
- Metal ions (e.g., iron, copper, chromium)
- Aromatics and hydrocarbons
- Leak, carryover, and interface detection
- Trace water / Moisture
- Solvent / Alcohol
- UV and Optical Density (AU, OD)
