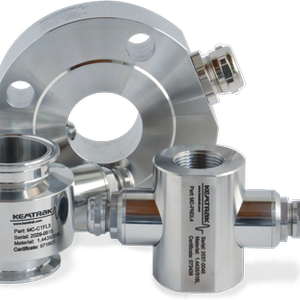

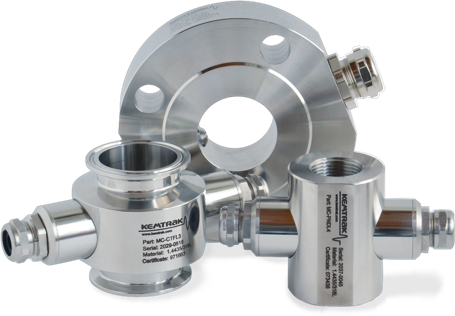

Measurement Cells and Probes
All measurement cells and probes contain no electrical components, moving parts, or sources of heat, ensuring intrinsically safe operation in hazardous areas and zero maintenance. Measurement confidence is further assured through Kemtrak’s integrated verification and calibration accessory using NIST-traceable filters placed directly into the optical measurement circuit without opening or contaminating the process line.
Kemtrak optical measurement cells and probes enable accurate real-time monitoring across industrial and hygienic applications. Containing no electronics, moving parts, or heat sources, they eliminate condensation and ensure safe operation in hazardous areas. They can couple directly to the UV Spectra or connect via fiber optics to remote remote analyzers. Featuring a true zero dead volume design, they prevent peak broadening, product loss, and cross-contamination in chromatography. Verification using NIST-traceable filters is performed directly in the optical circuit without opening the process line, ensuring high reliability and long service life.
- Zero maintenance: No electronics or moving parts.
- Zero dead volume: Sharp peak detection, no cross-contamination.
- Process connections: Extensive range including Tri-Clamp, DIN, and ASME.
- Materials: Stainless steel, titanium, Hastelloy, PTFE, and others.
- Hygienic design: Electropolished finish, FDA certified materials.
- High temperatures: Up to 330 °C (626 °F) continuous operation.
- Verification & calibration: NIST-traceable accessory.
- Selectable pathlengths: Optical pathlengths are freely selectable to suit each application.
- Hygienic Tri-Clamp Configuration: Manufactured from electropolished 316L (EN 1.4435) stainless steel with scratch-resistant sapphire windows and FDA compliant sealing materials.
- Industrial & Chemical Configuration: Available in stainless steel, titanium, Hastelloy, PTFE, and PVDF, with sapphire windows and double O-ring sealing to withstand highly corrosive media.
- Hazardous Area / Remote Option: Design with no electrical components, moving parts, or heat sources, enabling safe remote connection to analyzers via fiber optics.
- Calibration Configuration: Features an integrated verification and calibration accessory using NIST-traceable filters placed directly into the optical measurement circuit.
- Industrial and hygienic process monitoring: Real-time monitoring across a wide range of applications.
- Chromatographic applications: Precise peak detection where zero dead volume is required to prevent peak broadening, product loss, and cross-contamination.
- Corrosive media and high-temperature environments: Operations involving aggressive chemical media and temperatures up to 330 °C (626 °F).
- Hazardous areas: Intrinsically safe process monitoring requiring zero heat generation.
Analytical instrumentation methods: Absorbance, transmission, scatter, and fluorescence monitoring.
