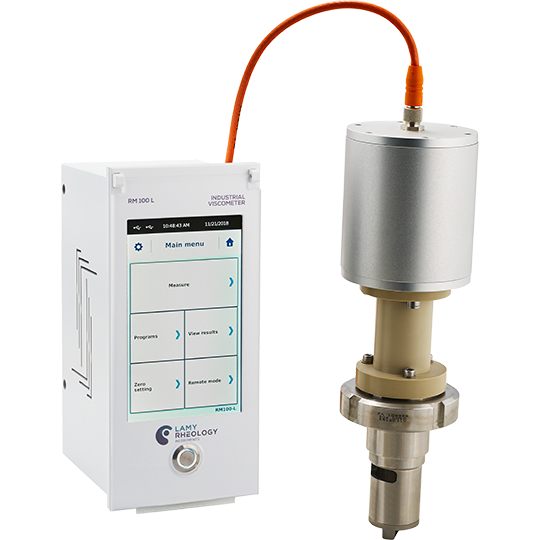

RM 100 L TOUCH
RM 100L - designed to work ON-LINE, it has the perfect seal provided by its magnetic coupling system.
The 19 speed RM 100L has speeds from 5 to 600 rpm, a 4-20 mA output signal, and serial and USB ports. It works directly on line on a pipe for high flow rates or in a bend for lower flow rates, and uses a magnetic coupling providing perfect seal. Returns real-time results of the viscosity.
RM 100L SPECIFICATIONS
Measuring principle - On line rotating viscometer
Rotation speeds - 19 speeds : 5 / 6 / 10 / 12 / 20 / 30 / 40 / 50 / 60 / 70 / 80 / 90 / 100 / 200 / 250 / 300 / 400 / 500 / 600 rpm
Torque range - 0.1 to 20 mNm
Accuracy - +/ - 1% of the full scale
Repeatability - +/ - 0.2%
Temperature - -20 to 80 °C (PT100 sensor)
Digital display - Temperature - Speed - Torque - Viscosity - MS - Time
Viscosity range - 1 mPa.s to 1 000 000 mPa.s
Supply voltage - 90-240 VAC 50/60 Hz
PC connexion - Serial and USB ports
Printer connexion - Parallel port
Other detail - The Visco-RM software allows automatic measurements on computer.
Dimensions (W x L x H) and weight - Electronic box :105 x 175 x 261 mm
- Head : 92 mm x h 312 mm 4 kg
Industrial on-line measurement.
Continuous measurement or with time to stop.
4-20 mA output for external control.
Magnetic bearing for sealing.
15m maximum distance between head and box.
Huge viscosity range.
Programming and recording methods.
External temperature probe (option).
Printer connection.
Compatible with RheoTex software.
- RM 100 L Short
- RM 100 L Standard
- RM 100 L Long
