RM 100 PLUS

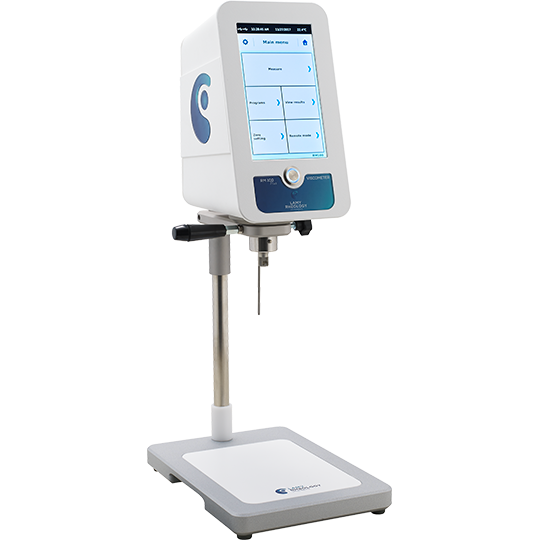

Lamy Rheology RM 100 Plus - Universal rotating viscometer without any spring or torsion rod, with serial and USB ports. With a touch screen that allows you to directly programme your measurement methods, you can also back up your data to analyse or export.
Universal rotating viscometer without any springs or torsion rods, with serial and USB ports. Complies with ASTM / ISO2555 , DIN / ISO3219 and MS-R standards and measures the sample’s temperature.
RM 100 SPECIFICATIONS
Measuring principle- Rotating viscometer with ASTM spindles Rotation speeds - 34 speeds : 0.3 / 0.5 / 0.6 / 1 / 1.5 / 2 / 2.5 / 3 / 4 / 5 / 6 / 10 / 12 / 20 / 30 / 40 / 50 / 60 / 100 / 200 / 250 / 300 / 400 / 500 / 600 / 700 / 800 / 900 / 1000 / 1100 / 1200 / 1300 / 1400 / 1500 rpm Torque range - 0,05 to 30 mNm Accuracy - +/ - 1% of the full scale Repeatability - +/ - 0.2% Temperature - By integrated PT100 sensor, from -20 to 120 °C Digital display - T°C - Speed or shear rate - Couple - MS - Viscosity - Time Viscosity range - 1 to 510 000 000 mPa.s Supply voltage - 90-240 VAC 50/60 Hz PC connection - Serial or USB port Printer connection - Parallel port Other detail - The Visco-RM software allows automatic measurements on computer. Dimensions (W x L x H) and weight - 122 x 145 x 660 mm - 6 kg
Program directly using touch screen
Memorise your measurement protocols directly on your viscometer
Set measuring times for thixotropic products.
- N100000 RM 100 PLUS VISCOMETER (standard stand) 1 to 780M*
- N100115 RM 100 PLUS VISCOMETER AC115 (without stand) 2 to 90M**
- N100120 RM 100 PLUS VISCOMETER with MS-R 2-3-4 in case (standard stand) 12 to 120M
- N100265 RM 100 PLUS VISCOMETER AC 265 (without stand) 1 to 28M***
- N100301 RM 100 PLUS VISCOMETER LR (standard stand) 1 to 26K****
- N102000 RM 100 PLUS VISCOMETER with MS-R1 to 5 in case (standard stand) 12 to 475M
- N100009 RM 100 PLUS VISCOMETER (rack stand) 1 to 780M* N100309 RM 100 PLUS VISCOMETER LR (rack stand) 1 to 26K****
