Viscosity & Rheology

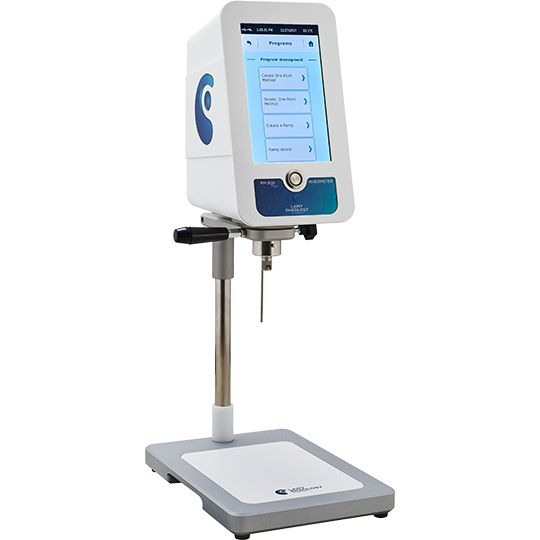

RM 200 PLUS

Rotating rheometer with imposed speeds.

Lamy Rheology RM200 Shear-rate imposed Rheometer, with variable rotational speeds from 0.3 to 1500 rpm. Makes use of both serial and USB ports. The RM 200 generates and models flow curves without using a computer.

RM 200 SPECIFICATIONS

Measuring principle - Rotating shear rate imposed rheometer

Rotation speeds -0.3 to 1500 rpm

Torque range - 0,05 to 30 mNm

Accuracy - +/ - 1% of the full scale

Repeatability - +/ - 0.2%

Temperature - By integrated PT100  sensor, from -20 to 120 °C

Digital display - T° - Shear rate - Torque - Viscosity - MS - LE - Time

Viscosity range - 1 to 510 000 000 mPa.s

Supply voltage - 90-240 VAC 50/60 Hz

PC connection  - Serial or USB port

Printer connection - Parallel port

Other detail - Rheomatic-T software enables to transfer data from RM 200 to computer. Rheomatic-P software drives the RM 200 from a computer.

Dimensions (W x L x H) and weight - 122 x 145 x 660 mm - 6 kg



  • Speed range : Unlimited number of speeds between 0.3 and 1500 rpm
  • Torque Range : From 0.05 to 30 mNm | From 0.005 to 0.8 mNm (LR VERSION) | From 0.05 to 40 mNm (AC 115 VERSION)
  • Temperature : The RM 200 TOUCH has a PT100 sensor which indicates temperatures between -50 °C to + 300 °C+/- 1 % de la pleine échelle
  • Accuracy : +/- 1 % of the full scale
  • Repeatability: +/- 0,2 %
  • Viscosity Range : 1 - 540,000,000 mPa·s depending on the measuring geometry used
  • Display : 7' Touch screen

Reference Designation Viscosity range (mPa.s)

N200000 RM 200 PLUS RHEOMETER (with standard stand) 1 to 780M*

N200009 RM 200 PLUS RHEOMETER (with rack stand) 1 to 780M*

N200110 RM 200 PLUS RHEOMETER with MS-R2-3-4 (with standard stand) 12 to 120M

N201000 RM 200 PLUS RHEOMETER with MS-R1 to MS-R5 (with standard stand) 12 to 475M





Chocolate

Food industry

Chemical / Petroleum industry

Cosmetics / Pharmaceuticals

Cars industry

Building industry

Paint / Coating / Ink

Teaching
