pH and Temperature

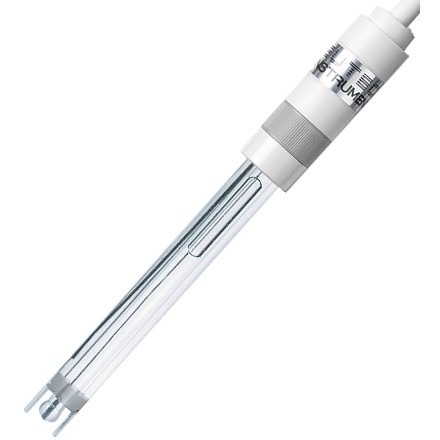

ECFC7252201B / ECFC7252202B PH Electrode

Description Features Configuration Application

Eutech™ offers a wide range of pH meters and electrodes that measure pH values in various educational, laboratory and industrial applications. This general purpose, plastic-body, double junction gel-filled pH combination electrode is used for general measurements. ECFC7252201B is available with 1 m cable.

Product Specification	Description
Parameter	pH
Range	0 to 13 pH
Temperature Range	0 to 80 °C
Liquid Junction Type	Porous HDPE pin
Internal Reference Type	Ag/AgCl
Sealed/Refillable	Sealed
Reference Junction	Double
Refilling Reference	Electrolyte –
Dimensions (Shaft)	90 x 12 mm
Cable Length	1 m / 2 m
Connector	BNC
Description	General purpose plastic-body pH electrode. Available with 2 m cable (ECFC7252202B)
Used With	All pH meters with BNC input connector

Parameter: pH/temperature
Liquid Junction Type: Porous HDPE pin
Sealed

Temperature Range: 0-80°C

Liquid Junction Type: Porous

HDPE pin Range: 0 to 13 pH

ECFC7252205B
ECFC7252203B
ECFC7252201B
ECFC7252202B
ECFC72522R01B
