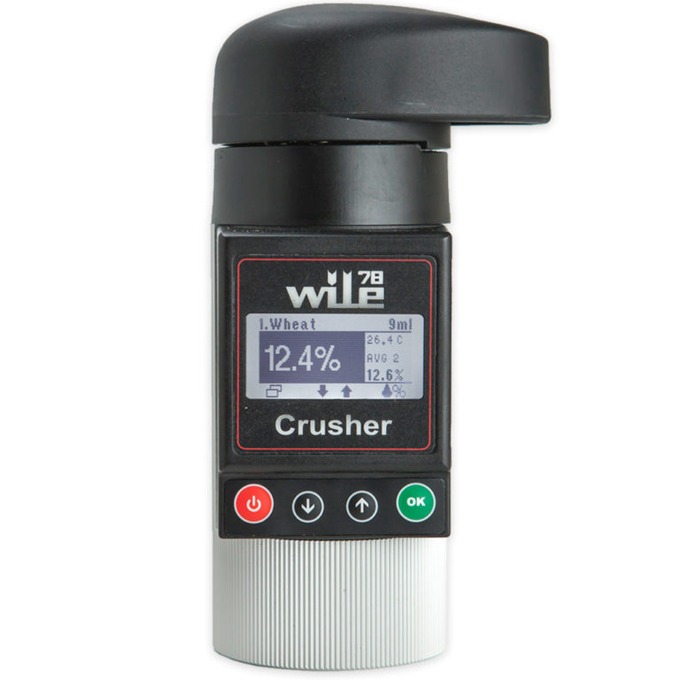

Wile 78

Moisture meter that measures 21 grains and seeds specific to each country.

Description Features Configuration Application

Handy and compact
Wile 78 is a compact meter that is easy to take to any location in the carrying case included in the meter’s delivery set. The sample size of the meter is small, making it a convenient tool for measuring samples before the start of the actual harvesting season.

The easy-to-hold scoop-shaped cap improves the user experience while being a handy scoop to load a proper amount of the sample into the meter. The tempered grinding teeth of the meter are hard-wearing and durable.

Highly accurate measurement result
The crushing meter allows to analyse the moisture content of kernels or seeds beneath the surface. This feature is useful, for instance, when the thickness of the shell varies depending on the species and the growth conditions, or if extremely moist grain is dried quickly, possibly leaving some humidity in the centre of the kernel, even though the external surface of it is already dry.

The set includes:

  • Meter
  • Carrying case with handle
  • Battery
  • Soft cleaning brush
  • Hard cleaning brush
  • Operating manual.

The measurement range varies between 4% and 44%, depending on the grain and the market. The typical range for cereal grains varies from 9% to 37%, and for oil seeds – from 5% to 28%. Repeatability of the measurement results: ±0.5% storage moisture with normal grain at room temperature.

Results in less than 20 seconds

LCD display

Automatic temperature compensation

Wide moisture range 3%..40%, dependent on the grain

Ergonomically designed cap

Wile 78

Measuring principle

  • Direct current voltage

Battery

  • 9 V alkaline (6LR61)

Accuracy (after calibration)

  • +/- 0,5 % of grain moisture (dispersion) below 18 %

Calculation of average

  • Automatic average for up to four measurements

Offset adjustment

  • ± 10 % on each crop

Display Contrast

  • Adjustable

Temperature range

  • 5 – 50°C, 32-122° F

Grossweight

  • 915 g / 2 lbs



Wile 55

Measurement Range

  • Grain and seeds 8-35%
  • Oil seeds 5-25%

Temperature range •

  • In use 040°C •
  • Storage-2060oC

Accuracy •

  • +/- 0,5 % moisture with normal grain

Power source •

  • 9 Volt battery (IEC 6F22)
  1. Wheat 9.6 - 37.6%
  2. Rye 10 - 41%
  3. Barley 9 - 39%
  4. Oats 8.6 - 38%
  5. Buckwheat 9.6 - 38%
  6. Millet 7.2 - 25%
  7. Sorghum 8.6 - 44%
  8. Corn 9 - 44%
  9. Sunflower 4.4 - 43%
  10. Field Peas 10.2 - 31.4%
  11. Soya Bean 4 - 36%
  12. Rapeseed 5 - 28.2%
  13. Linseed 4.8 - 29.8%
  14. Mustard 5.4 - 40%
  15. Universal Rice 8.8 - 42%
  16. Triticale 9 - 40%
  17. Beans 10.6 - 30.6% White Clover 7.4 - 39.4%
  18. Red Clover 9 - 33.4%
  19. Timothy-grass 9.2 - 27.8%
  20. Meadow Fescue 9.2 - 34.2%
  21. Camelina 5 - 34% Ryegrass 9 - 34.2%
