Protein & Moisture

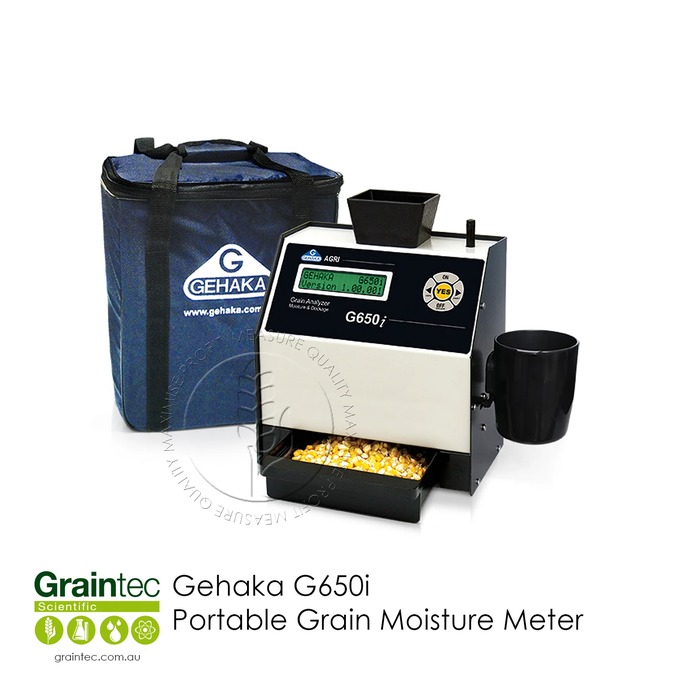

Portable Grain Moisture Meter - Gehaka 650i

The G650i features an electronic scale, two thermometers, and a capacitance meter, all controlled by an advanced internal microprocessor for precise measurement management.

Description Features Configuration Application

The G650i is the state-of-the art in compact grain moisture and foreign material tester. It consists of an electronic scale, two thermometers and a capacitance meter. All measurement management is carried out by a state-of-the-art internal microprocessor.

Performs calculations required for grain classification, such as impurities, defects, test weight and moisture
Measures moisture content of grain sample accurately, quickly (up to 15 seconds) and safely
Allows the percentage calculation of impurities and damaged grains through its built-in digital scale, by simply accessing the “Dockage” function
Allows determining the apparent density of the grain sample with a very simple operation through the “Test Weight” function

Number of scales: 72
Measurement range: According to the commodity calibration
Division: 0,1 %
Moisture reading accuracy: ± 0.25 % relative to the oven standard
Sample weight to measure the moisture: 80 g < weight < 180 g according to the product
Sample weight for impurity calculation: Up to the capacity of the weighing vat
Scale: 1,000 g x 0.1 g Combined Error of ± 0.2 g
Thermometer: 0º to 100 ºC (with ± 0.3 ºC accuracy)
Data interface: Bidirectional, Serial RS232C
Tester net weight: 3,90 Kg
Dimensions: 345 x 300 x 168 mm (W x H D)
Power supply: 9 Volt Alkaline Battery or 90 to 240 VAC automatic network adapter

Grain Harvesting, Grain Storage and Warehousing, Food Processing Industry, Seed Production and Distribution
