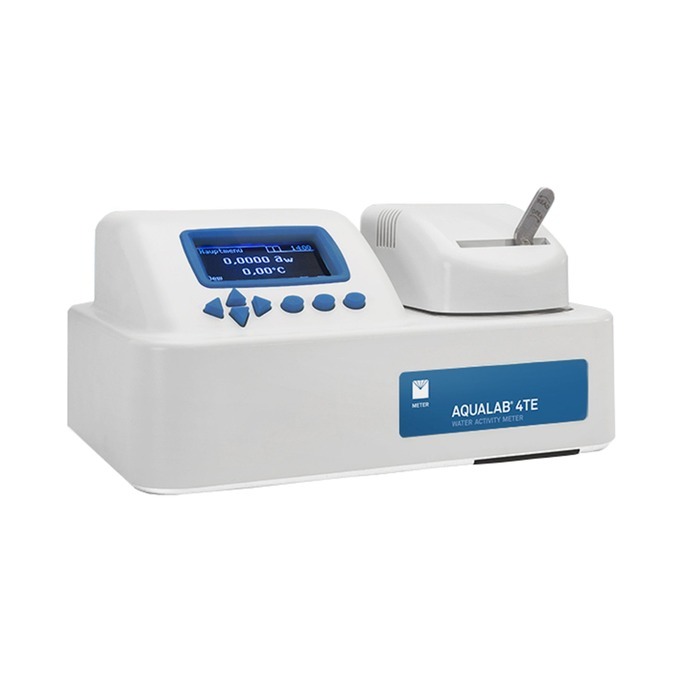

Water activity meter - Aqualab Series 4TE

Aqualab Series 4TE - Fastest most accurate water activity meter

The AquaLab Series 4TE water activity meter has internal temperature control which allows you to choose a measuring temperature between 15 and 50°C. Since water activity is temperature dependent, the AquaLab Series 4TE will allow you to expertly manage the internal temperature to precisely measure the water activity of your product. The AquaLab series 4 can be used in:

  • Accelerated shelf-life studies
  • Isotherm studies
  • Studies determining the effects of temperature on a sample aw
  • Evaluate the effects on a sample when there are large fluctuations in ambient temperature
  • Meeting government or company regulations on temperature specific aw measurements

•0.0001 aw resolution

•Ability to restrict user access and to control which instrument settings can be changed by users

•Displays water activity and moisture content simultaneously**

•Data storage (stores up to 16000 readings for later download)

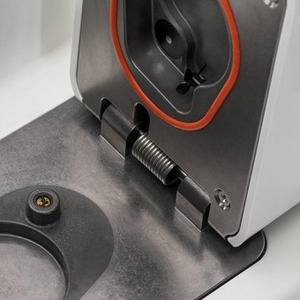

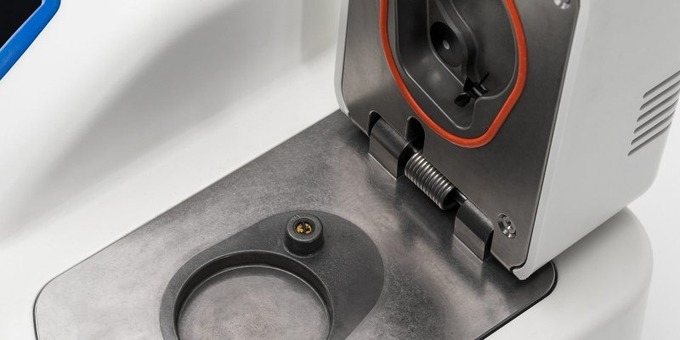

•New 'flip-top' block gives easy cleaning access

•Improved sample chamber seal

•Advanced software reporting package

Sensor Types a. Chilled-mirror dewpoint. b. Infrared temperature.

Accuracy ±0.003 aw

Repeatability ±0.001 aw

Resolution ±0.0001 aw

Range 0.030 to 1.000 aw

Sample Dish Capacity 7 ml recommended (15 ml full).

Measurement Time Less than 5 minutes.

Display 128x64 pixel LCD display with backlighting.

Temperature Control 15 to 50°C (±0.2°C)

Test Result Memory 10,000 readings (each reading includes water activity, moisture content, temperature, time, date, operator, and sensor used)

Program Identification Alphanumeric; Programmable to display product name, lot, or product ID number.

Operating Environment 4 to 50°C (39.2 to 122°F) 0 to 90% Relative Humidity (non-condensing.)

Universal Power 110 V to 220 V AC, 50/60 Hz Less than 0.4 amps.

Data Interface RS232A compatible, 8-data bit ASCII code, 9600 baud, no parity, 1 stop bit, cable included.

Case Dimensions 26.7 x 27.8 x 12.7 cm (11 x 7.1 x 5.1 in)

Case Material Machined aluminum frame; injection molded plastic cover.

Weight 3.18 kg (6.9 lb) Warranty Three years, factory parts & labor.

Certifications CE; AOAC Approved Method for Measurement of Water Activity, Part 11 Compliance
