F-900

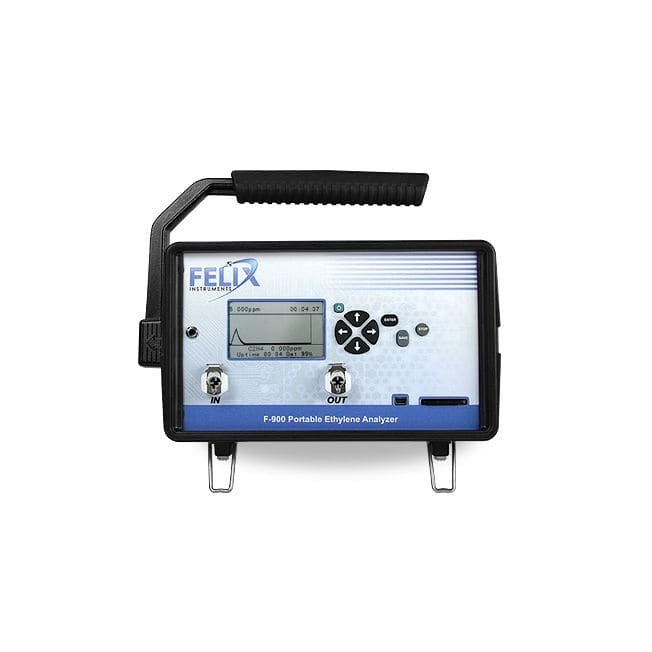

Portable Ethylene Analyzer
The F-900 Portable Ethylene Analyzer non-destructively measures ethylene in real time, providing Quality Assurance professionals with the data they need to manage ethylene accurately and efficiently. Using two electrochemical sensors, the F-900 measures ethylene from 0-200 ppm with a lower detection limit of 0.025 parts-per-million (ppm). The patent pending “PolarCept” filter removes polar hydrocarbons from the gas stream to ensure that measurements are not polluted by interfering gases such as ethanol.
- Highly sensitive C2H4 sensors with a lower detection limit of .04 ppm (40 ppb)
- Performs non-destructive measurements
- Rapid response time
- Functional across broad temperature and humidity range
- CO2 and O2 sensing capability (optional)
- Compact and lightweight (2.43 Kg)
- Real-time, continuous monitoring
- Internal data logging and storage (4GB SD card)
- User adjustable sampling rate
- Terminal block for communication with ventilation or other controlled atmosphere systems

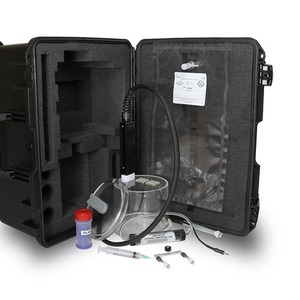

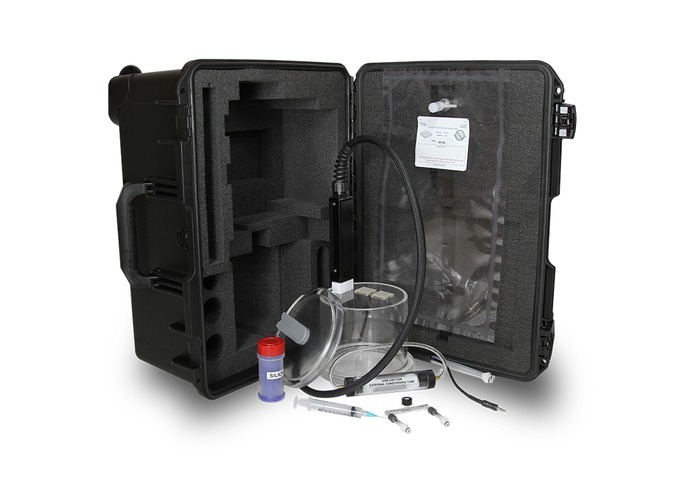

- Optional Injection Port Kit for small volume static samples
- Transflective display enables easy viewing in varied light conditions
- Functional across a broad temperature and humidity range
Main Unit
| Air Sampling Rate: | 80 ml/min | |
| Measuring Rate: | 1 second intervals, open or closed loop | |
| Display: | Sunlight visible transflective LCD | |
| Operating Environment: | 0°C - 45°C; 0-90% humidity non-condensing | |
| Battery Capacity: | 5 hours - Rechargeable Li-Ion (5000 mAh) | |
| Dimensions: | 255mm (L) x 210mm (W) x 138mm (H; includes body with legs) | |
| Weight: | 2.96 kg | |
| Enclosure: | Anodized aluminum | |
| Warm-up Time: | 1 min (C2H4) | |
C2H4 PPB Sensor
| Sensor Type: | Electrochemical | |
| Range: | 0-10 ppm | |
| Resolution: | 0.001 ppm | |
| Accuracy: | 5% ± 0.025 ppm | |
| Lower Detection Limit: | 0.025 ppm (25 ppb) | |
C2H4 PPM Sensor
| Sensor Type: | Electrochemical | |
| Range: | 0-200 ppm | |
| Resolution: | 0.1 ppm | |
| Accuracy: | 5% ± 0.5 ppm | |
| Lower Detection Limit: | 0.5 ppm | |
CO2 PPM Sensor (optional)
| Sensor Type: | Low-power non-dispersive infrared gas analyzer | |
| Range: | 0-2000 ppm | |
| Resolution: | 0.1 ppm | |
| Accuracy: | 5% | |
CO2 PCT Sensor (optional)
| Sensor Type: | Infrared sensor, pyroelectric detector | |
| Range: | 0-20% | |
| Resolution: | 0.01% | |
| Accuracy: | 5% | |
O2 Sensor (optional)
| Sensor Type: | Electrochemical | |
| Range: | 0-100% | |
| Resolution: | 0.1% | |
| Accuracy: | 5% | |
- Monitoring controlled atmosphere facilities to ensure ethylene levels do not exceed critical thresholds
- Assisting research and development efforts by providing a simple, portable platform to measure ethylene, O2, and CO2
- Measuring flux from a single fruit to understand how ethylene emission levels may vary across treatments
- Measuring head-space accumulation for analysis of small-volume samples or fruits with low ethylene emission rates
