Soils & Environmental

F-950

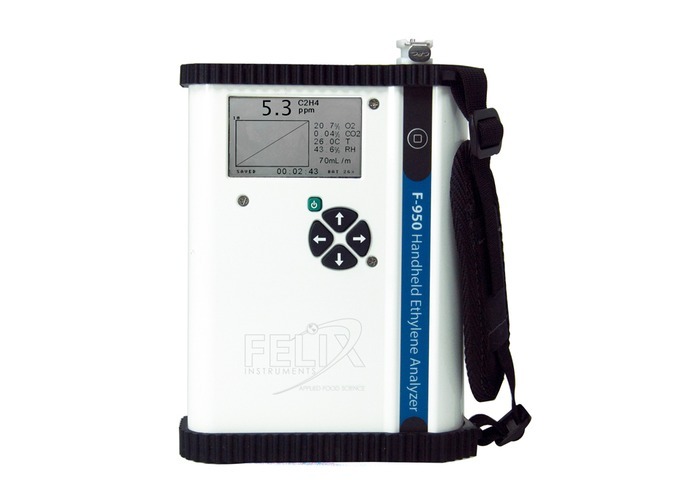

Ethylene Analyser

Description Features Specifications Application

To achieve ideal conditions in any environment, the F-950 measures critical ripening gases to maintain optimal produce quality at every phase.

Trigger Mode Measurements

	C₂H₄	CO₂	O₂

Sensor Type:	Electrochemical	Infrared Sensor, Pyroelectric detector	Electrochemical

Range:	0-200ppm	0-100%	0-100%

Resolution:	0.1ppm	0.01%	0.10%

Lower Detection Limit:	0.15ppm	0.50%	0.30%

Sampling Volume:	35 ml	12 ml	12 ml

Response Time:	35 seconds	12 seconds	12 seconds

Accuracy (absolute):	0.15 ppm	0.50%	0.30%

Accuracy (relative):	5%	3%	2%

Offset Calibration:	Weekly	Weekly	Weekly

Span Calibration:	3 months	12 months	6 months

Sensor Replaceable (by user):	yes	no	yes

Lifetime:	1 year	5 years	2 years

Continuous Mode Measurements

	C₂H₄	CO₂	O₂

Sensor Type:	Electrochemical	Infrared Sensor, Pyroelectric detector	Electrochemical

Range:	0-200 ppm	0-100%	0-100%

Resolution:	0.1 ppm	0.01%	0.10%

Lower Detection Limit:	0.2 ppm	0.01%	0.10%

Response Time:	80 seconds	6 seconds	12 seconds

Accuracy (absolute):	0.2 ppm	0.01%	0.10%

Accuracy (relative):	5%	3%	2%

Offset Calibration:	Weekly	Weekly	Weekly

Span Calibration:	3 months	12 months	6 months

Sensor Replaceable (by user):	yes	no	yes

Lifetime:	1 year	5 years	2 years
