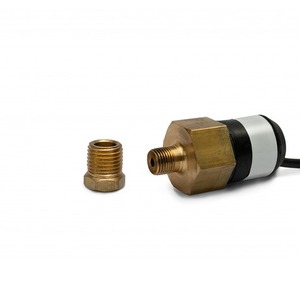

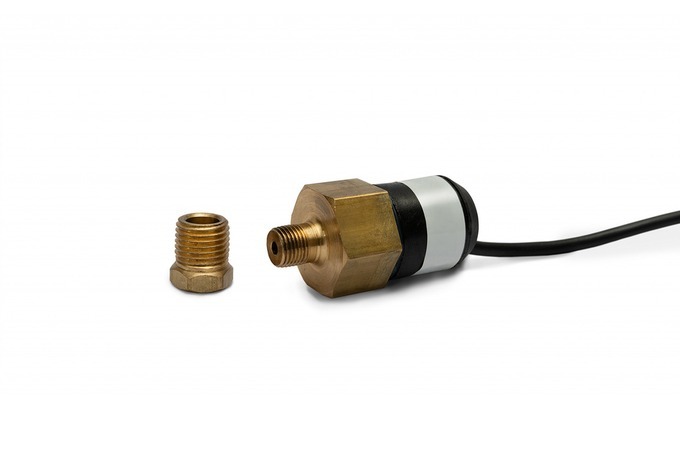

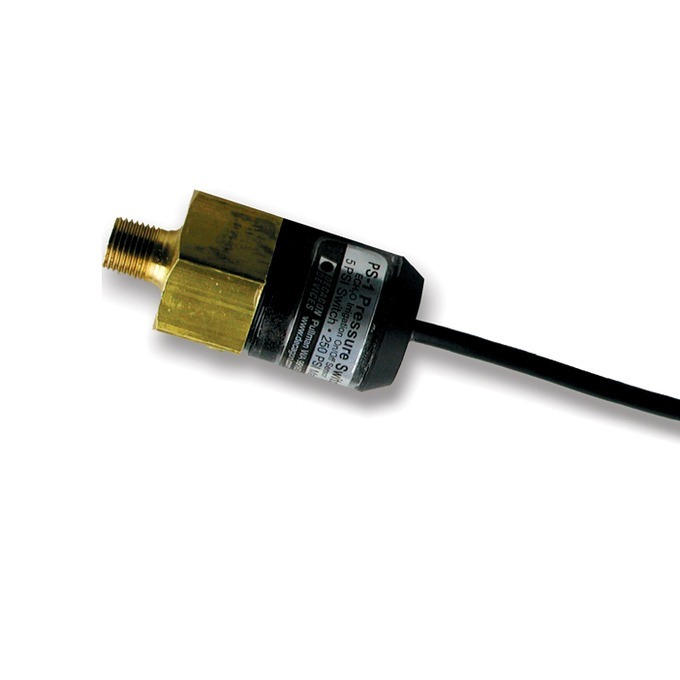

PS-1 Irrigation Pressure Switch

Track irrigation events with the rest of your soil moisture data by recording when water is turned on and off.

Description Features Specifications Application

Simple water pressure sensor

The PS-1 Irrigation Pressure Switch adds irrigation water on/off data into the soil moisture data set. On/off data is a critical parameter to add to your system when using soil moisture sensors to monitor irrigation because it enables you to know your irrigation times.

Simple water pressure sensor

The PS-1 registers ON at 5 PSI (±1.0 PSI). Because the sensor must be plumbed into the irrigation line, your data logger should be located where this can be done conveniently and cleanly.



SET POINT

5 psi switch (± 1 psi)

MAXIMUM PRESSURE

250 psi

PROOF PRESSURE

750 psi

MEDIA CONNECTION

1/8 NPT male brass

NEMA RATING

4, 13

DIAPHRAGM MATERIAL

BUNA N

ELECTRICAL CONNECTION

5 meter cable with 3.5 mm connector for use with Decagon Em50 series loggers

The PS-1 pressure switch provides irrigation water on/off data integration into the soil moisture data set.
