Rain Gauges

Low-resolution rain gauge: Rain gauge for measuring irrigation events. (For all-in-one weather monitoring, see the ATMOS 41 weather station). Configure as volume gauge: The ECRN-50 can be reconfigured to measure the output of irrigation systems in terms of either gallons or liters per hour. Single spoon mechanism: The single-spoon mechanism tips at 1 mm of precipitation/ irrigation. Durable: Made of durable plastic that is UV, water, and frost-resistant.

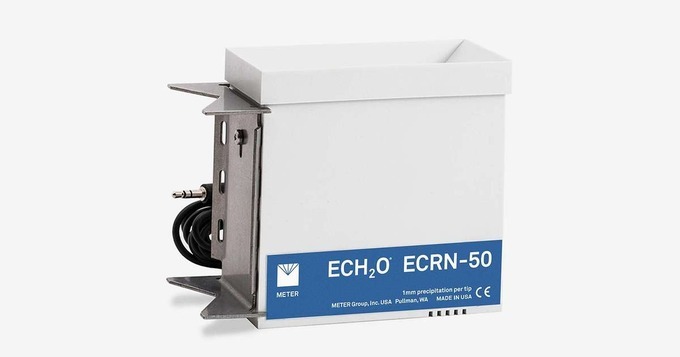

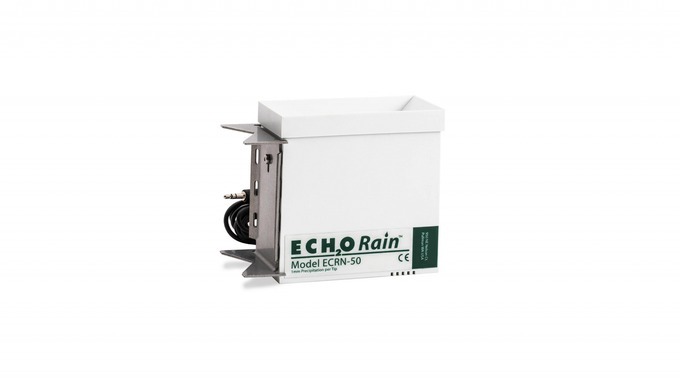

ECRN-50 LOW-RESOLUTION RAIN GAUGE

Low-Resolution Rain Gauge
The ultimate rain gauge for recording irrigation events.

Configure as Volume Gauge
The ECRN-50 can be reconfigured to record the output of irrigation systems with relation to either gallons or liters per hour.

Single Spoon Mechanism
The single-spoon mechanism tips at 1 mm of precipitation/ irrigation; precision is ±2%.

Durable
Made of robust plastic that is UV, water, and frost-resistant.



ECRN-100 HIGH-RESOLUTION RAIN GAUGE


High Resolution Rain Gauge
The premium rain gauge for recording precipitation and for use in scientific purposes.

Dual Spoon Mechanism for Better Resolution
Two internal tipping spoons make this rain gauge incredibly sensitive, with one tip per 0.2 mm of rain.

Durable
Made of tough plastic that is UV, water, and frost-resistant.

ECRN-50 LOW-RESOLUTION RAIN GAUGE



RESOLUTION

1 mm

SENSOR TYPE

Single spoon tipping bucket

OUTPUT

Pulse

CASE MATERIAL

ABS

OPERATING ENVIRONMENT

0°C to 60°C

CABLE LENGTH

5 m

CABLE CONNECTOR TYPES

3.5 mm 'stereo' plug

SENSOR DIMENSIONS

5 cm x 10 cm

DATA LOGGER COMPATIBILITY (NOT EXCLUSIVE)

Decagon Em50 series, Decagon Em5b, Procheck, Campbell Scientific

WARRANTY

One year, parts and labor

*The older model ECRN Rain Gauge used with Em5 loggers is not compatible with the Em50.  Please contact Decagon for an ECRN upgrade kit that will allow you to use it with the Em50.



ECRN-100 HIGH-RESOLUTION RAIN GAUGE



RESOLUTION

0.2 mm

SENSOR TYPE

Double-spoon tipping bucket

OUTPUT

Pulse

CASE MATERIAL

ABS

OPERATING ENVIRONMENT

0°C to 60°C

CABLE LENGTH

5 m

CABLE CONNECTOR TYPES

3.5 mm 'stereo' plug

RAIN GAUGE DIMENSIONS

17 cm x 14.2 cm

DATA LOGGER COMPATIBILITY (NOT EXCLUSIVE)

Decagon Em50 seriesProCheck, Campbell Scientific

WARRANTY

One year, parts and labor

Rain gauge with 9602 plate and 2.5 meter cable with jack termination for connection to the datalogger.
Supplied with mounted mast bracket and two metal eyelets.
