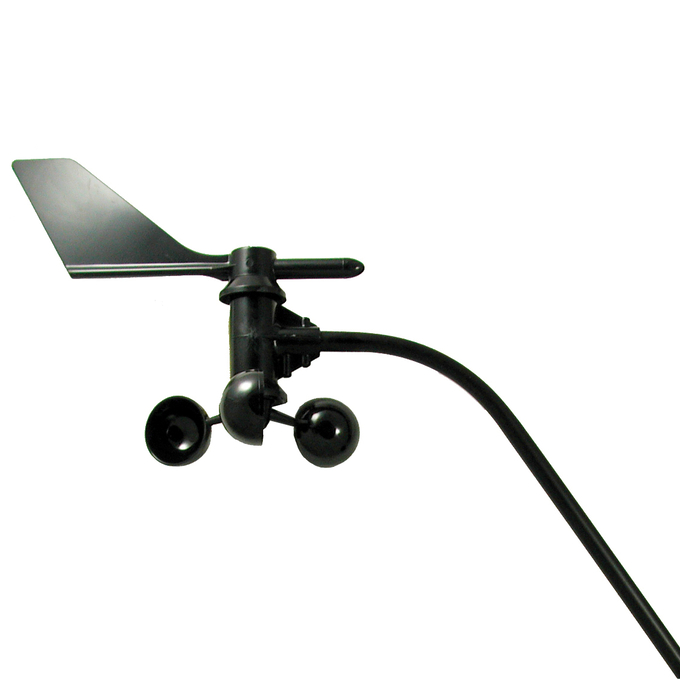

Davis Cup Anemometer

Measure wind speed and direction over your chosen interval. Straightforward setup. Plug-and-log simplicity when used with the Em50 series of data loggers.

Description Features Specifications Application

Anemometers report wind speed in miles per hour (mph), kilometers per hour (kph), meters per second (m/s), or knots.

Simple to set up

Wind Speed and Direction
The Davis anemometer isn't designed to be revolutionary--it's all about simpleness. It records wind speed and direction across your chosen measurement interval with no need for complex setup, maintenance, or programming.

Straightforward Setup
Setup is simple: mount with two screws, orient with a compass, plug into the logger, and start logging wind data.

Wind: a Critical Soil Moisture Variable
Wind is one of the key variables that determines how quickly water moves through the soil-plant-atmosphere continuum. With the Davis anemometer, you can include this important variable in your soil moisture data set without hassle.

WIND SPEED ACCURACY	± 5%
WIND DIRECTION ACCURACY	7°
WIND SPEED RESOLUTION	1 mph (0.45 m/s, 1.6 km/hr)
WIND DIRECTION RESOLUTION	1° (0 to 355°)
WIND SPEED RANGE	0 - 129 mph (58 m/s, 209 km/hr)
START THRESHOLD	3 mph (1.3 m/s, 4.8 km/hr)
WIND DIRECTION RANGE	0 to 360°
MATERIAL	Wind Vane and Control Head: UV-resistant ABS Wind Cups: Polycarbonate Anemometer Arm: Black-anodized aluminum
DIMENSIONS	18.5 in. long x 7.5 in. high x 4.75 in. wide (470 mm x 191 mm x 121 mm)
WEIGHT	2 lbs. 15 oz. (1.332 kg)
DATA LOGGER COMPATIBILITY (NOT EXCLUSIVE)	Decagon Em50 Series, Campbell Scientific

Wind Direction Range: 0 to 360° Suitable For: Research Monitoring Irrigation Management Soil, Moisture, Temperature Measurement Fertiliser Control Soil / Fertiliser Drainage Water Level Monitoring Micro-climate and Canopy
