Leak Detectors

Can Integrity Tester

The Can Integrity Tester is specifically developed to test the seal integrity in canned goods.

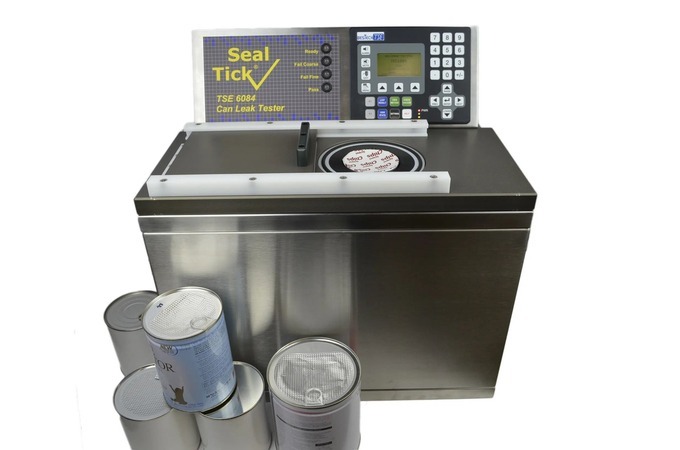

The Sealtick TSE 6084 is a non-destructive vacuum decay leak testing devices designed for testing seal integrity of cylindrical can made of tin, cardboard or composite materials such as combination of paper, plastic and metals. The test minimizes the stress exerted on the package and maximizes leak sensitivity by putting the test item in a close-fitting chamber. The system is housed in a robust, stainless steel chamber for application in production and industrial environment. The test items are manually inserted in the chamber and the handle is closed to initiate a fully automatic test sequence. Results are displayed as a Pass or Fail, along with a quantitative measure of the leakage rate. The results are logged into an importable spreadsheet which can be retrieved via USB or Ethernet interface for quality traceability.
ENQUIRE NOW

  • Tests any combination of Can shapes within largest can size (inserts required).
  • Protects Can shape and maximizes sensitivity through the use of volume-filling Inserts.
  • Rapid testing - from 5-15 seconds for detecting most leaks.
  • Simple operation - test initiates from sliding-lid clo- sure.
  • Test results shown on lamps: Pass – Fine Fail – Coarse Fail
  • Quantitative result on backlit display.

  • 20 nameable methods. User programmable to opti-mize for different sized products.

  • Memory - 30 days of results (1 file per day). On the 31st day, the first days results are cleared. 30 days of tracking the test counters progress (1 file per 10 days). On the 31st day the first 10 days are cleared.

  • Ethernet connection allows periodic upload for man- datory record keeping and trend identification, plus online monitoring via Web Browser.
  • Test parameters stored and accessible under pass- word access.
  • Setting and control of test times and parameters from keyboard.
  • Internal generation of test vacuum from compressed air (alternatively external vacuum pump).
  • High resolution measurement of leak rate.
  • Recall of most recent test data to review test parameters
  • Calibration menus for pressure.
  • Stainless steel construction.

Package size: up to 150 (d)x 190(h) mm
Testing rate: 3-15 seconds per package
Resolution: 1 Pa/s
Test results: Pass – Fine Fail – Coarse Fail Indicator Lamps Quantitative result on backlit display
Connection: Ethernet, optional USB interface
Password protection: Yes
Power input: 115V or 230V AC
Compressed air Supply: 5-10bar

  • Leak Detection for Fresh Red Meat
  • Leak Detection for Poultry Meat
  • Leak Detection for Fish
  • Leak Detection for Cold or Ready-to-Eat meats
  • Leak Detection for Bakery Products
  • Leak Detection for Dairy Products
  • Leak Detection for Fruit and Vegetables
  • Leak Detection for Dried Meats
  • Leak Detection for Nuts and Dried fruit
  • Leak Detection for Coffee and Tea
  • Leak Detection for Drinks
  • Leak Detection for Fats and Oils
  • Leak Detection for Freeze Dried Products
  • Leak Detection for Fresh Pasta
  • Leak Detection for Nutraceutical Products
  • Leak Detection for Packaging / Manufacturing and Seal Integrity
