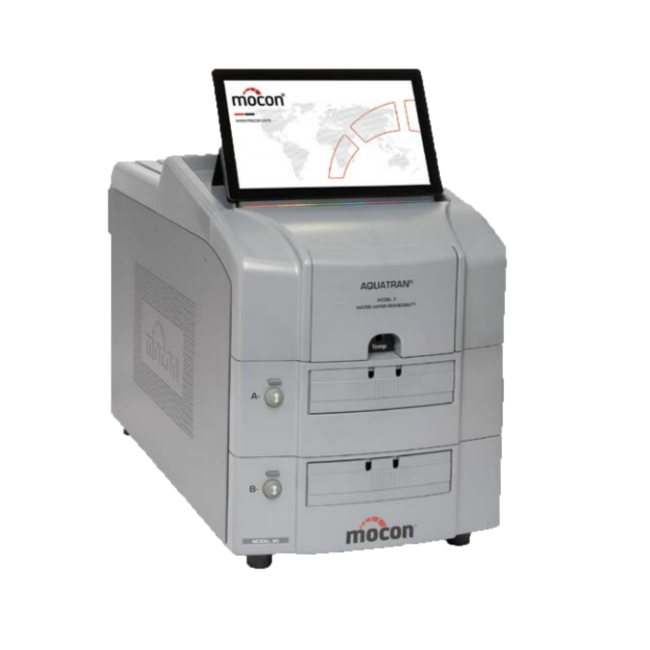

The AQUATRAN 3 analyzer is the industries most trusted WVTR instrument for high to ultrahigh-level barriers because it can measure each molecule of water vapor entering the sensor. The analyzer is easy to use and offer the lowest detection levels available in the market. It features 2 independent cells with changeable horizontal test cartridges that allow a wide variety of sample sizes and types to be easily and accurately tested.

Highest Accuracy and Repeatability

  • Patented AQUATRACE® sensor is the most trusted absolute Coulometric sensor on market that never need calibration
  • Ultra-Low detection level down to 0.00005 g/(m2*day)
  • Fully automated temperature, flow and RH controls simplify testing and provide unparalleled repeatability
  • TruSeal gas flushed perimeter sealing system reduces potential environmental water vapor ingress providing accurate results

Demanding Applications

  • OLED flexible displays and electronics applications that require ultra-high barriers to moisture
  • High moisture barrier packages for Pharmaceutical industry

The AQUATRAN 3 analyzer can test the Water Vapor Transmission Rate (WVTR) on both films and packages from high to ultra-high barriers. It uses the MOCON’s patented long life AQUATRACE WVTR sensor which has a linear output throughout the entire measurable range. This guarantees highly accurate and repeatable results throughout it’s a wide detection range from 0.00005 to 5 g/(m2*day).

The upper detection limit can be extended with the use the reduced area film test cartridge (factor x9), or various size masking.

The analyzer has industry leading features such as removable and interchangeable horizontal test cartridges, easy to use touch screen operator interface, and fully automated testing providing higher throughput in the lab.

For more than 15 years, MOCON’s AQUATRAN series have been the most trusted and longest lasting on the market. For complex multi-layered high barriers or sensitive electronics and panels, the AQUATRAN 3 is the right choice for advanced WVTR testing.

Removable Cartridges
  • Easy sample prep on the benchtop
  • One button release and loading
  • Pneumatic clamping provides more repeatable results
  • Interchangeable cartridge options extend the range and flexibility of the analyzer without tools while maintaining arcuate results
  • Cartridge options include: Reduced area to extend testing range without masks, improved accuracy testing of paper-based barriers, adaptors for remote testing of packages or extreme conditions, and custom designs for unique testing requirements.
  • Eliminate Individual Zero
  • Reduced testing time (increase throughput)
  • More repeatable results
Automated Control Features
  • Flow, Temp, & RH control
  • Test Process Development and Recommendations
  • Programmable Test Sequencing
  • Test report printing and export
  • Sensor Protection
Touchscreen Interface
  • Intuitive automated operation requires less training
  • Built in multi-level user management and data security
  • Event log & trouble shooting guide
  • Save on valuable lab space by eliminating need for PC
  • Ultra-low level of detection down to 5 x 10 -5 g/(m2*day)
  • Longer sensor life than others on the market
  • Accurate and repeatable results
  • Most trusted P2O5 sensor that fully complies with ASTM F3299 and ISO 15106-3
  • Full 100% parts and workmanship warranty for 12 months



Temperature Control Range

5 °C to 50 °C ± 0.2 °C at 100% RH
10 °C to 40 °C ± 0.2 °C at 5 to 90% RH

Humidity Control, Film Cell, Test Gas

100% and 5% to 90% RH ± 3 RH

RH Film Cell-to-Cell Uniformity

± 3 RH

Test Range, Film, Std 50 cm2 sample

0.05 to 5000 mg/(m2 • day)
0.0032 to 322.6 mg/(100in2 • day)

Test Range, Package

0.00025 to 25 mg/(pkg • day)

Resolution, Film

0.01 mg/(m2 • day)
0.00065 mg/(100in2 • day)

Resolution, Package

0.00005 mg/(pkg • day)

Repeatability, Film

±0.050 mg/(m2 • day)
±0.0032 mg/(100in2 • day) or 1% of value, whichever is greater

Repeatability, Package

0.00025 mg/(pkg • day) or 1% of value, whichever is greater

Film Size

4” x 4” Std, 2”x2” optional

Film Thickness

Up to 120 Mil

Film Test Area

50 cm2 std, Option to 5.6 cm2

Carrier Gas


Physical Specifications

  • 15.5” H x 12” W x 23” D (39.4 cm x 30.4 cm x 58.0 cm)
  • 95 Lbs. (43.1 kg)

Electrical Requirements

  • Voltage: 100 - 240 VAC 50/60 Hz
  • Maximum Power Draw: 700 VA
Laboratory Requirements



22 °C ± 2 °C


10 °C to 30 °C



20% to 80% RH (non-condensing)


5% to 85% RH (non-condensing)

Gas Supply Requirements

Carrier Gas

Gas Composition

Nitrogen (99.9999% N2 or better)

Supply Pressure, Nominal

29 PSI, (2.0 Bar), (200 kPa)

  • Remote Access and Control (requires optional Perm-Net Light software)
  • Standard Ethernet port (100T)
  • Dual USB 2.0 ports (for connection of keyboard, mouse or memory devices)
Compliance Standards

This product is UL and CSA listed using the ETL mark from Intertek Group plc. and is certified to conform to CE.

Conforms to the following internationally recognized safety standards.

  • IEC 61010-1:2010 Third Edition
  • UL 61010-1:2012 Third Edition
  • CAN/CSA-C22.2 No. 61010-1:2012 Third Edition

Conforms to the following internationally recognized EMC standards.

  • EN 61326-1:2013
  • EN 61000-3-2:2006, A1:2009, A2:2009
  • EN 61000-3-3:2013

Conforms to EU Directive 2011/65/EU RoHS Compliance.

Package Films

  • Monolayer
  • Multi-layer
  • Coated Films
  • Coated Paper/paperboard


  • Common food packages
  • Medical packages
  • Bottles/Closures
